Potter Roemer 1000018

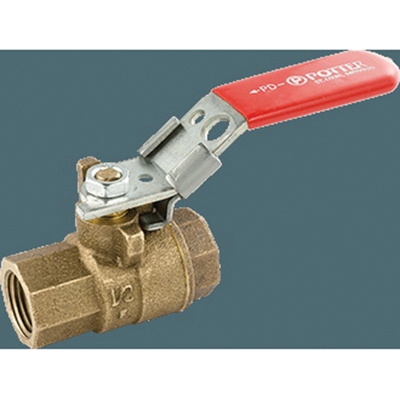

BVL Bronze Lever Type Bleeder Valve, 1/2 in NPT
- Manufacturers: Potter Roemer
- Brand Name: Potter Roemer
- PN: P1000018
- MPN: 1000018
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Connection Size | : | 1/2 in |
| Connection Type | : | NPT |
| Item Name | : | Bleeder Valve |
| Material | : | Bronze |
| Model | : | BVL |
| Pressure Rating | : | 300 psi |
| Type | : | Lever Type |
The model BVL, lever type bleeder valve, is for use as a test valve for pressure-operated devices on wet pipe sprinkler systems that have excess pressure, or dry pipe sprinkler systems. The BVL should be installed in-line with the pressure device. It provides a convenient means for removal or testing the pressure actuated device without affecting the pressure in the system. Closing the valve (moving the valve handle perpendicular to the 1/2 in pipeline) shuts-off the water or air from the supply and opens a small orifice ce (pin-hole) to exhaust the pressure between the valve and the pressure device. This should provide a low pressure actuation of the pressure device, testing its operation.
- Zinc-plated steel handle
- 0.125 in exhaust orifice
