Potter Roemer 1010202

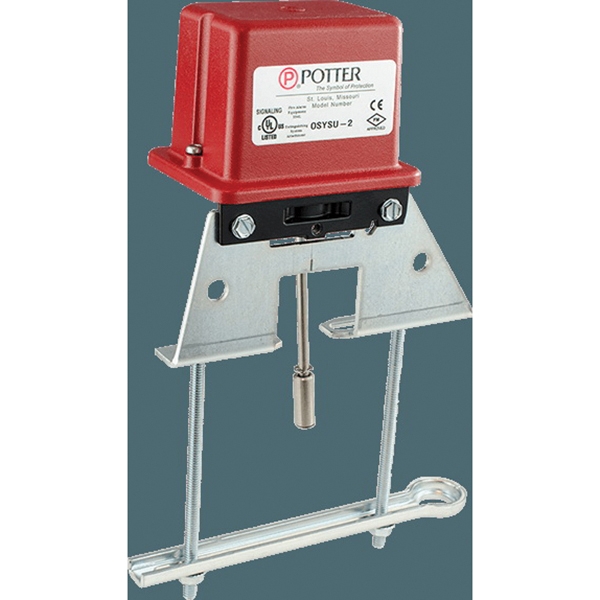

OSYSU-2 Red Cover and Black Base Powder Coated Die Cast DPDT Outside Screw and Yoke Valve Supervisory Switch, 10 A at 125/250VAC
- Manufacturers: Potter Roemer
- Brand Name: Potter Roemer
- PN: P1010202
- MPN: 1010202
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Color | : | Red Cover and Black Base |
| Contact Configuration | : | DPDT |
| Contact Rating | : | 10 A at 125/250 VAC, 2 A at 30 VDC Resistive, 10 mA minimum at 24 VDC |
| Dimension | : | 6.19 in L x 3.05 in W x 9.36 in H |
| Finish | : | Powder Coated |
| Item Name | : | Outside Screw and Yoke Valve Supervisory Switch |
| Material | : | Die Cast |
| Model | : | OSYSU-2 |
| Series | : | OSYSU |
| Temperature Rating | : | -40 to 140 deg F |
The OSYSU is used to monitor the open position of an OS&Y (outside screw and yoke) type gate valve. This device is available in two models, the OSYSU-1, containing one set of SPDT (Form C) contacts and the OSYSU-2, containing two sets of SPDT (Form C) contacts. These switches mount conveniently to most OS&Y valves ranging in size from 2 in to 12 in (50mm to 300mm). They will mount on some valves as small as 1/2 in (12.5mm). The cover is held in place by two tamper resistant screws that require a special tool to remove. The tool is furnished with each device.
- Visual switch indicators
- 2-conduit entrances
- Adjustable length trip rod
- Accommodates up to 12 AWG wire
- 3-position switch detects tampering and valve closure
- Knurled mounting bracket prevents slipping
- Fine adjustment feature for fast and easy installation
- Conduit entrance - two knockouts provided for 1/2 in conduit
- Assembled in USA
Standards/Certifications: UL, CUL listed, CE marked, FM, MEA, EAC approved, RoHS compliant
