Potter Roemer 1340104

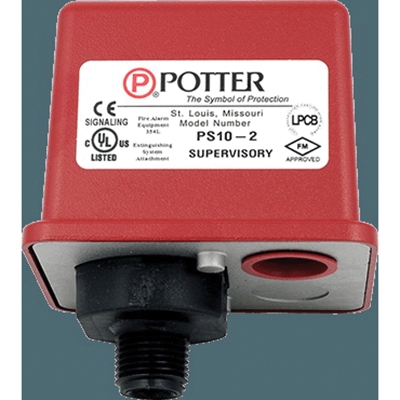

PS10-2 Nylon (2) SPDT Pressure Waterflow Switch, 1/2 in MNPT, 10.1 A at 125/250VAC

  • Manufacturers: Potter Roemer
  • Brand Name: Potter Roemer
  • PN: P1340104
  • MPN: 1340104
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Type      :      MNPT
Contact Configuration      :      (2) SPDT
Contact Rating      :      10.1 A at 125/250 VAC, 2 A at 30 VDC
Dimension      :      3.78 in W x 3.20 in D x 4.22 in H
Item Name      :      Pressure Waterflow Switch
Material      :      Nylon
Model      :      PS10-2
Pressure Rating      :      300 psi
Series      :      PS10
Size      :      1/2 in
Temperature Rating      :      -40 to 140 deg F

The Potter PS10 series pressure actuated switches are designed for the detection of a waterflow condition in automatic fire sprinkler systems of particular designs such as wet pipe systems with alarm check valves, dry pipe, preaction, or deluge valves. The PS10 is also suitable to provide a low pressure supervisory signal, adjustable between 4 and 15 psi.

  • Conduit entrance - two knockouts provided for 1/2 in conduit, individual switch compartments and ground screws suitable for dissimilar voltages
  • 4 - 8 psi factory adjustment, 2 psi differential

Standards/Certifications: UL, cUL listed, CE marked, CSFM listed, NYMEA, FM, LPC approved
