Yellow Jacket 69354

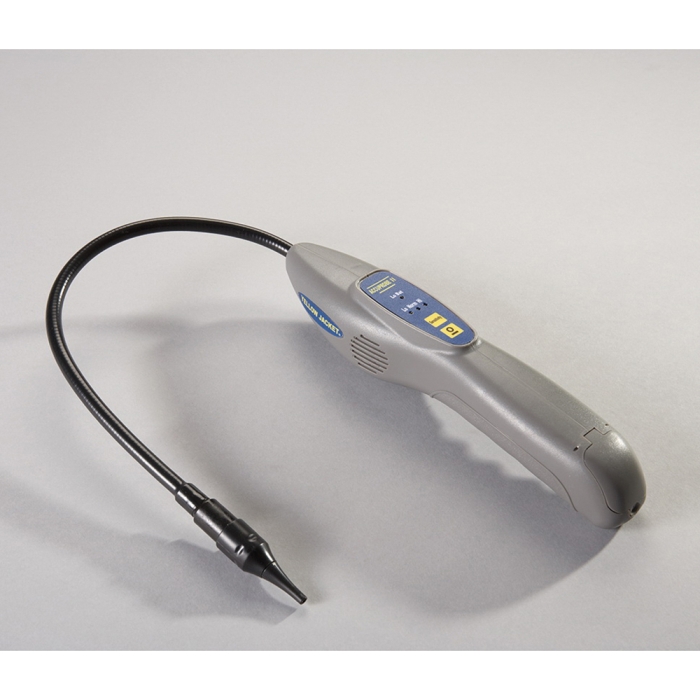

Accuprobe II Leak Detector with Heated Sensor for Detects HCFC Refrigerants R-22 and R-124, 10-1/2 in L

  • Manufacturers: Ritchie Engineering
  • Brand Name: Yellow Jacket
  • PN: RC69354
  • MPN: 69354
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Item Name      :      Leak Detector with Heated Sensor
Length      :      10-1/2 in
Sub Brand      :      Accuprobe II
Temperature Rating      :      24 - 125 deg F

The Yellow jacket accuprobe UV and accuprobe II handheld leak detectors detect all HCFC refrigerants such as R-22 and R-124. The ultra-sensitive long life sensor with exclusive Heated Electrochemical Sensor Technology (HES) also detects the more current, difficult-to-detect HFC refrigerants such as R-134a, R-404A, R-407C and R-410A. The Accuprobe UV is equipped with the unique digital SmartAlarm LED display - the first digital leak size indicator in a hand-held heated sensor leak detector. This feature takes the guesswork out of whether or not to repair a small leak. Unlike the more traditional LED bar graphs that copy or mimic the audio alarm signal, the SmartAlarm digital leak size indicator measures, registers and displays the leak size independently from both the audio alarm and the sensitivity level. The Accuprobe UV also features a 3 LED UV light system that works with 395-415nm wavelength leak tracing dyes. The sleek, ergonomic design of these Yellow Jacket leak detectors makes them easy-to-use in close areas and extendable into hard-to-reach areas.

  • Advanced digital smartalarm leak size indicator (AccuProbe UV)
  • Flashing visual alarm indicator at probe end (AccuProbe UV)
  • Audio mute button (AccuProbe UV)
  • Operates on (4) AA alkaline batteries (AccuProbe UV can also use AC power)
  • (3) LED UV light system that works with 395 - 415 nm wavelength leak tracing dyes (AccuProbe UV)
  • Microcontroller technology
  • Ultra-high sensitivity to detect 0.06 oz/years of R-134a and 0.03 oz/years of R-22
  • Automatic calibration and reset to ambient
  • Detects HFC, HCFC and CFC refrigerants
  • Long-life stable sensor utilizing heated electrochemical sensor (HES) technology
  • 3-selectable sensitivity level settings
  • Sleek ergonomic design
  • Low battery indication
  • Temperature rating 24 - 125 deg F
  • Humidity 0 - 95% RH non-condensing
  • CE marked
  • True mechanical pump
  • Sensor life - over 300 hr service life with minimal cleaning and no adjustments
  • Made in USA

Standards/Certifications: SAE J2791 certified

Applications: For all HCFC refrigerants R-22 and R-124
