Yellow Jacket 93600

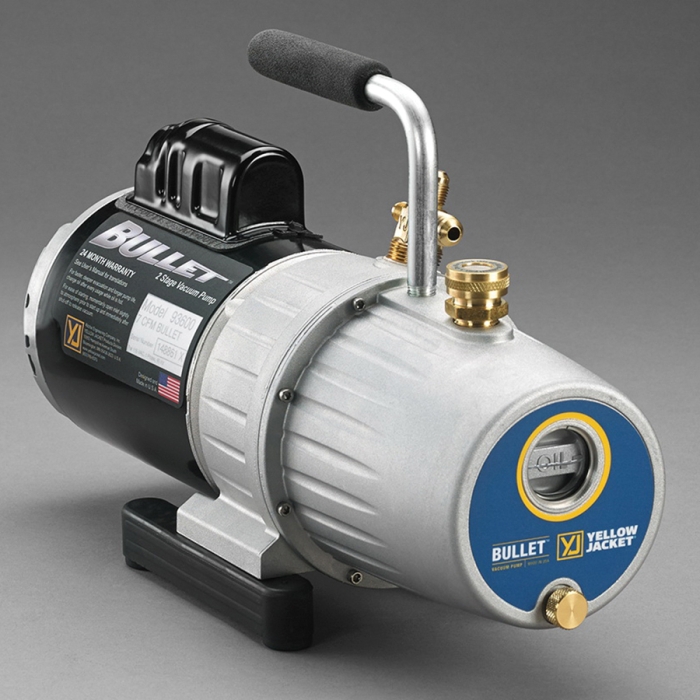

Bullet 2-Stage Vacuum Pump, 115 VAC, 7 cfm

  • Manufacturers: Ritchie Engineering
  • Brand Name: Yellow Jacket
  • PN: RC93600
  • MPN: 93600
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Capacity      :      28 oz Oil
Connection Size      :      1/4 x 3/8 x 3/8 in Intake
Cord Length      :      6 ft
Dimension      :      16-1/4 in L x 6 in W x 11-/2 in H
Flow Rate      :      7 cfm
Frequency Rating      :      60 Hz
HP Rating      :      1/2 hp
Item Name      :      Vacuum Pump
Phase      :      1 ph
RPM      :      1725 rpm
Sub Brand      :      Bullet
Temperature Rating      :      40 deg C
Type      :      2-Stage
Voltage Rating      :      115 VAC

Wide mouth oil reservoir port for easier, cleaner filling. The Yellow Jacket bullet vacuum pump is a 2-stage rotary vane oil-sealed 7 cfm pump that pull-down to 25 microns or better.

  • Doubles as pump exhaust, threaded to attach garden hose for exhausting to remote location
  • Large oil sight glass for easy monitoring of oil level
  • Large brass oil drain for easy access to fast oil changes
  • Internal intake check valve prevents oil backup into the system during a power failure
  • Intake filter screen keeps damaging particles from entering the pump
  • Heavy-duty rotors and bearings
  • Heavy-duty steel handle for well-balanced carrying
  • Tethered-port caps stay with the pump
  • Stable base, wide-stance metal with rubber overlay
  • 24-months limited over-the-counter warranty
  • 25 micron
  • Thermal overload protection
  • Motor mounted switch
  • Made in USA
