Rectorseal 96106

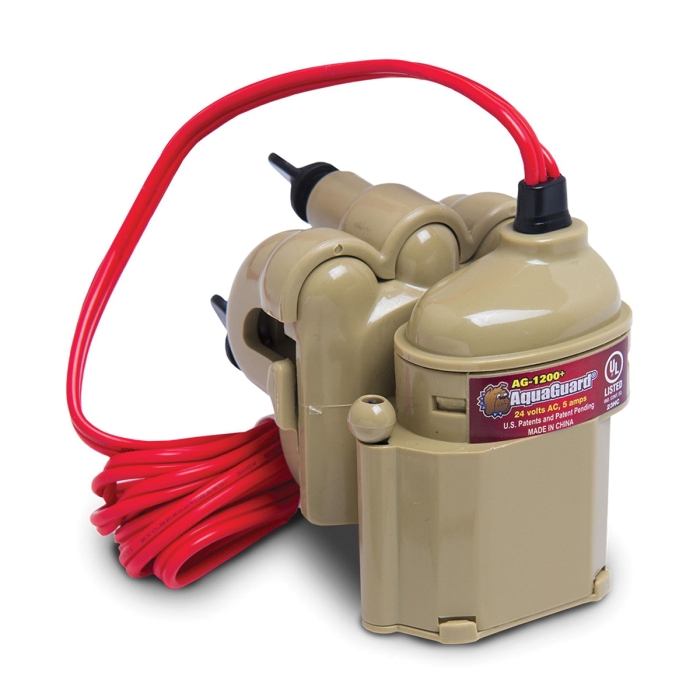

AG-1200+ AquaGuard Beige Float Switch System for Metal and Plastic Secondary Pans

  • Manufacturers: Rectorseal Corporation
  • Brand Name: Rectorseal
  • PN: RE96106
  • MPN: 96106
  • UPC: 021449961066
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      5 A
Color      :      Beige
Dimension      :      3-1/2 in L x 2.7 in W x 3.4 in H
Item Name      :      Float Switch System
Sub Brand      :      AG-1200+, AquaGuard
Voltage Rating      :      24 VAC

The AG-1200+ has all of the features of the 1100plus an innovative 2-piece clamp design which allows it to be mounted to a metal drain pan (without a lip) or inferior, non-AquaGuard plastic drain pan (with a lip) in 10 s or less, without the need for a drain hole in the pan.

  • Easy and drill-free installation
  • Pull-up test knob
  • Protective cover keeps out insulation, pests and debris
  • 5 A high capacity sensor designed for metal and plastic pans
  • Vertical trigger depth of 3/4 in

Standards/Certifications: UL 508 listed

Applications: For metal and plastic secondary pans

  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS22756_Spec.pdf
  • pdf Technical Drawing https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS22756_Tech.pdf
