Rectorseal 96108

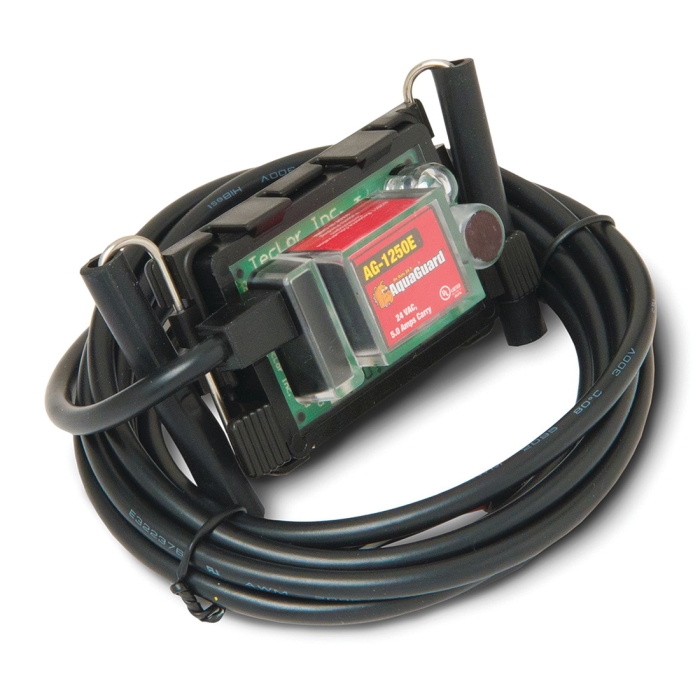

AguaGuard AG-1250E Multi-Purpose Water Sensor, 24 VAC, 1.9 in W x 1.4 in H

  • Manufacturers: Rectorseal Corporation
  • Brand Name: Rectorseal
  • PN: RE96108
  • MPN: 96108
  • UPC: 021449961080
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Color      :      Clear/Black
Contact Rating      :      5 amp at 24 VAC Relay Normally Closed
Dimension      :      1.9 in W x 1.4 in H
Item Name      :      Water Sensor
Model      :      AG-1250E
Sub Brand      :      AguaGuard
Type      :      Multi-Purpose
Voltage Rating      :      24 VAC

The AG-1250E multipurpose water sensor is mounted directly in a metal or plastic secondary pan, floor or wall. The AG-1250E is a high-amperage, solid state sensor with no moving parts to break down or become clogged. The low profile design makes it easy to install.

  • 5 A, 24 V AC solid state sensor with water detection LED light
  • Versatile mounting options allow positioning on the unit, in a secondary pan, floor or wall
  • Normally open 4th wire for optional external alarm, digital controller or energy management systems
  • Clip-on mounting base for easy cleaning and drying of sensor
  • New adjustable height mount
  • 6 ft power cord

Standards/Certifications: cULus listed, patent number 8578770/UL 508 listed

Applications: For metal/plastic secondary drain pan, floor or wall

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS22757_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS22757_Spec.pdf
  • pdf Technical Drawing https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS22757_Tech.pdf
