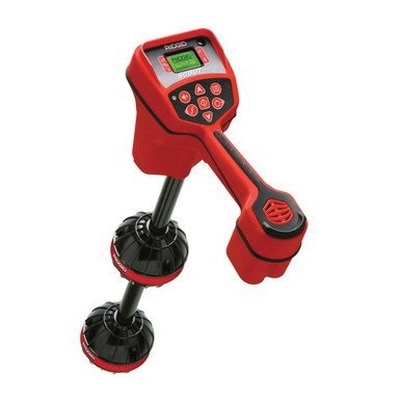

The NaviTrack Scout locator is designed to solve the most demanding remote transmitter (sonde) locates using the same multi-directional locating technology as the full-featured NaviTrack II. The NaviTrack Scout is ideal for users locating SeeSnake cameras and other sondes who occasionally need to locate energized lines.

• The Navitrack Scout multi-directional antenna technology sees the entire signal all of the time
• Simply maximize the signal strength and you have found the target
• This locator verifies the locate position using a micro-mapping display to mark distinctive poles in front of and behind the target, insuring an accurate locate
• Depth is automatically calculated and displayed when over the target
• Standard frequencies (sonde) - 16, 512, 640 Hz, 874 and 33 kHz, line trace - 128 Hz, 1, 8 and 33 kHz, passive AC line trace - 60, 50 Hz
• Transmitters can be approached from any direction for faster, more accurate locates
• Locate can be easily verified using the large mapping display
• Continuous depth measurement
• -4 to 122 deg F temperature rating
• Remote transmitters (sonde): 16, 512, 640, 874 Hz, 33 kHz
• Active line trace: 128, 1, 8, 33 kHz
• Passive AC: 60/50 Hz
• Battery life approximately 24 hr

• Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS4102_Cat.pdf
• Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS4102_Spec.pdf
