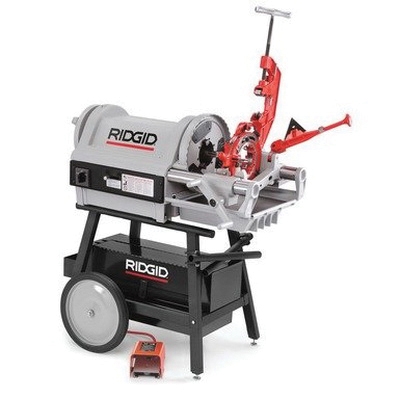

The model 1224 threads a wide range of pipe including black, galvanized and plastic-coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 rockwell C.

• An induction motor helps minimize noise
• A special capacitor-start/capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced
• 1/4 - 2 in universal die head, 2-1/2 - 4 in receding die head allows cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads
• Constant and proper lubrication of dies and workpiece with through-head oiling
• Nominal pipe capacity 1/4 - 2 in at 36 rpm, 2-1/2 - 4 in at 12 rpm, 4 - 6 in with 161 geared threader
• 1/4 - 2 in bolt capacity
• Motor control reverse/off/forward, heavy-duty rotary-type and integral foot switch
• 2-speed gear box with a 3:1 ratio
• Chuck hammer type with replaceable rocker-action jaw inserts
• Rear centering device - cam-action
• Oiling pump self-priming, aerator-type, automatic-reversing, constant-flow
• Oiling through die head
• NPT thread type
• Full lifetime warranty

Standards/Certifications: ANSI/UL listed, CSA certified

• Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS22912_Cat.pdf
