Zoeller Pumps 940-0007

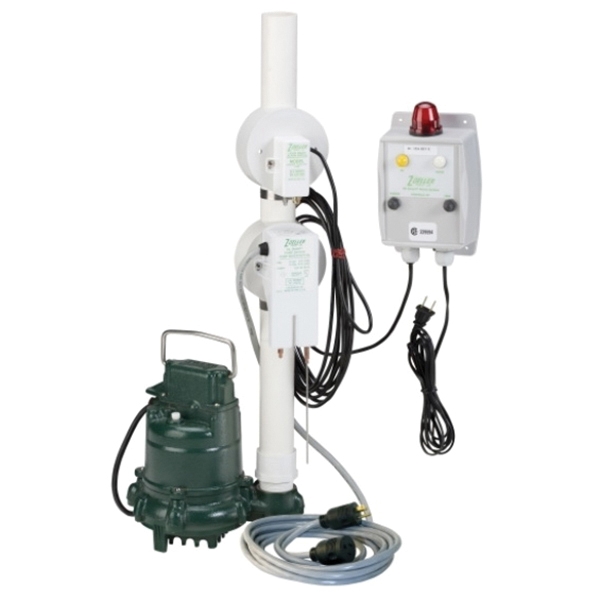

Powder Coated Epoxy Cast Iron Oil Guard Pump Package with Smart Switch and Alarm Panel, 115 V, 1/2 hp, 3450 rpm, 77 gpm, 44 ft

  • Manufacturers: Zoeller Pump Company
  • Brand Name: Zoeller Pumps
  • PN: Z940-0007
  • MPN: 940-0007
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      10.5 A
Cord Length      :      20 ft
Finish      :      Powder Coated Epoxy
Flow Rate      :      77 gpm
Frequency Rating      :      60 Hz
HP Rating      :      1/2 hp
Item Name      :      Oil Guard Pump Package with Smart Switch and Alarm Panel
Material      :      Cast Iron
Maximum Feet of Head      :      44 ft
RPM      :      3450 rpm
Voltage Rating      :      115 V
  • Includes N153 non-automatic pump, oil guard pump switch and panel
  • NEMA 4X alarm panel enclosure
  • Audible, light alarms and dry contacts
  • Pre-set on-off points differentiate oil and water and alerts maintenance personnel of high water or oil detected conditions
  • 20 amp internal relay
  • Alarm test and silence switches
  • 304 stainless steel probes
  • 20 ft piggyback electrical supply cord
  • UL 508 approved switch
  • Alarm panel cCSAus certified
  • Durable, cast iron construction, powder coated epoxy finish, all stainless steel fittings pump

Standards/Certifications: ASME A17.1

Applications: For submersible dewatering applications
