BrassCraft 13X C

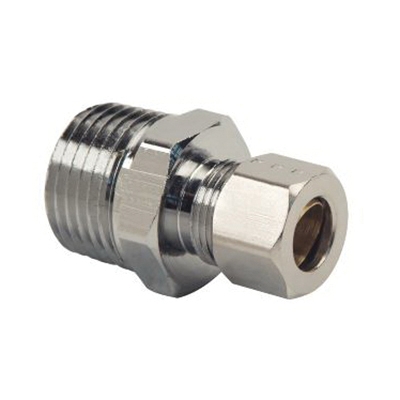

Chrome-Plated Brass Reducing Adapter, 3/8 x 1/2 in, Compression x MIP, Lead-Free

  • Manufacturers: Brasscraft Manufacturing
  • Brand Name: BrassCraft
  • PN: 13X C
  • MPN: 13X C
  • UPC: 026613136264
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      3/8 x 1/2 in
Connection Type      :      Compression x MIP
Finish      :      Chrome-Plated
Item Name      :      Reducing Adapter
Length      :      1.44 in
Material      :      Brass
Pressure Rating      :      200 psi
Temperature Rating      :      -65 to 250 deg F

BrassCraft compression reducing adapter is machined from brass. Compression fittings are ideal for use in plumbing, instrumentation, hydraulic and pneumatic systems (gasoline, grease, oil, potable and non-potable water, vacuum and air lines). Can be used to install copper, aluminium, or plastic tubing. Not recommended for use with steel tubing.

  • Lead-free
  • 1-piece brass body provides strength, durability and longer-lasting performance
  • Designed for use with aluminum, copper and plastic tubing, not recommended for steel tubing
  • Little to no tube preparation required, connection does not require flaring, soldering or other types of tube preparation
  • Plastic and PEX tubing installations require sleeves and/or inserts
  • May be used in both indoors and outdoors
  • Compression fittings do not require flaring, soldering or other types of tube preparation
  • Drill through (no tube stop) x MIP

Applications: For use with potable and non-potable water, instrumentation, hydraulic and pneumatic systems

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS2802_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS2802_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS2802_Spec.pdf
