American Granby 1500-20

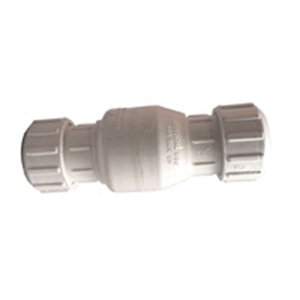

PVC Swing Check Valve, 2 in, Compression

  • Manufacturers: American Granby
  • Brand Name: American Granby
  • PN: 1500-20
  • MPN: 1500-20
  • UPC: 670686500202
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      2 in
Connection Type      :      Compression
Item Name      :      Swing Check Valve
Material      :      PVC
Pressure Rating      :      125 psi
  • No metallic parts, corrosion-resistant
  • Full-flow design
  • Angle seat and weighted flapper designed for low pressure seal
  • PVC weighted and shielded flapper will retain backpressure up to 125 psi
  • Iron pipe sized 1/2 - 4 in
  • Compression style for IPS sized plastic or metal pipe 1-1/4 - 3 in
  • Ideal for close working areas, easy pipe alignment
  • Compression ends can be used as union connections
  • Designed for both horizontal and vertical use

Standards/Certifications: ANSI/NSF 372 certified

Applications: For close working areas, easy pipe alignment
