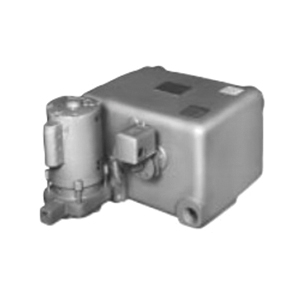

The Watchman Condensate units feature cast iron receivers that are warranted for 20-years from date of shipment against failure due to corrosion. They are supplied in 6, 9, 14 and 23 gal receiver sizes with low inlet heights for ease of installation. Pumps are the reliable and proven design Watchman close coupled centrifugal pumps with bronze impeller, bronze wearing ring, carbon/ceramic/mechanical seal rated to 250 deg and cast iron housing. Motors are vertically mounted drip proof ball bearing design with built in overload protection and stainless steel shafts. Pumps are controlled by heavy-duty, double pole, externally adjustable float switches. Duplex units are provided with mechanical alternators as standard for 2 pump control. Units are normally factory or locally stocked.

• Separate NPT connections provide a secondary vent for safe operation
• NPT drain connection
• Double pole float switch simplex models
• Mechanical alternator - duplex models
• Easy-to-install
• Easy to service with vertical pull-out pumps
• 100% factory tested as a complete unit
• Inlet basket strainer
• Y-strainer
• Control panels for wall mounting
• Pump seal maximum temperature 225 deg F
• 2 ft NPSH pumps capable of handing 209 deg F condensate
• 8000 sq-ft EDR system
• 9 gal receiver capacity
• Float switch included

Applications: For residential, commercial and industrial steam heating and industrial recessing, dry cleaning plants, chemical refineries

• Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS3390_Cat.pdf
