Domestic Manufacturer 0308002401

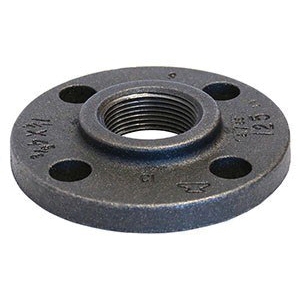

1011 SCH STD Class 125 Black Cast Iron Faced and Drilled Companion Flange, 1-1/4 in, FNPT, Domestic

  • Manufacturers: Domestic Manufacturer
  • Brand Name: Domestic Manufacturer
  • PN: BCF114
  • MPN: 0308002401
  • UPC: 690291021329
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1-1/4 in
Connection Type      :      FNPT
Finish      :      Black
Hub Diameter      :      2-5/16 in
Item Name      :      Faced and Drilled Companion Flange
Length Through Hub      :      13/16 in
Material Specifications      :      ASTM A126 (A) or (B)
Material      :      Cast Iron
Model      :      1011
Outside Diameter      :      4-5/8 in
Pressure Class      :      Class 125
Pressure Rating      :      200 psi
Schedule      :      STD
Temperature Rating      :      -20 to 150 deg F
Thickness      :      1/2 in

Class 125 (standard) iron flanges are manufactured to American national standard ASME B16.1 except as noted. Class 125 iron flanges are available in both black-painted and galvanized.

Standards/Certifications: ASME B16.1, ASME B1.20.1, cULus listed, FM approved
