Apollo Valves 20-104-00

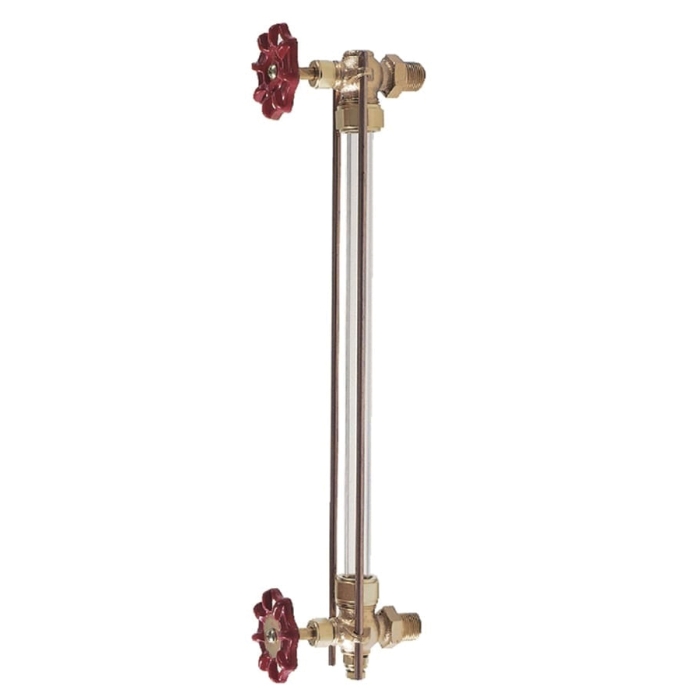

20-100 Bronze Standard Pattern Water Gauge, 1/2 in

  • Manufacturers: Apollo Valves
  • Brand Name: Apollo Valves
  • PN: 20-104-00
  • MPN: 20-104-00
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1/2 in
Dimension      :      2.3 in L x 4.2 in H Open, 3.9 in H Closed
Gauge Size      :      5/8 x 12 in
Item Name      :      Water Gauge
Material Specifications      :      ASTM B16, ASTM B584 C84400
Material      :      Bronze
Pressure Rating      :      125 psig at 350 deg F, 300 psig at 100 deg F
Series      :      20-100
Type      :      Standard Pattern
  • Coated steel guard rods included
  • TFE with hypalon stem packing
  • EPDM glass packing
  • Steel rods
  • Aluminum wheel type
  • Aluminum or plastic composition hand wheels
  • Made in USA
  • 5-years warranty

Standards/Certifications: ASME, ASSE, CRN, cCSAus certified

Applications: For all types of liquid level verifications
