Victaulic S271CCQ420

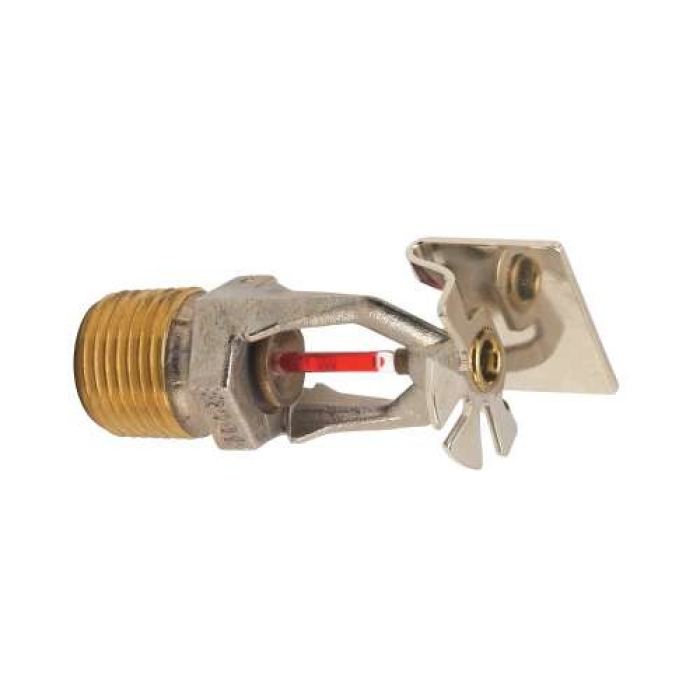

FireLock V2710 Chrome-Plated Quick Response Horizontal Sidewall Sprinkler, 1/2 in NPT, 155 deg F, 5.6 K-Factor

  • Manufacturers: Victaulic
  • Brand Name: Victaulic
  • PN: S27-1CC-Q420
  • MPN: S271CCQ420
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Type      :      NPT
Dimension      :      3 in H
Finish      :      Chrome-Plated
Item Name      :      Horizontal Sidewall Sprinkler
K-Factor      :      5.6
Model      :      V2710
Nominal Size      :      1/2 in
Orifice Size      :      1/2 in
Pressure Rating      :      250, 175 psi
Sub Brand      :      FireLock
Temperature Rating      :      155 deg F
Type      :      Quick Response

These model V27, standard spray horizontal sidewall sprinklers are designed for up to ordinary Hazard per NFPA 13, and can be used for standard or recessed installations. The design provides a crescent-shaped water discharge pattern for installation along a wall or under a beam or ceiling. It is cast with a hex-shaped wrench boss to allow easy tightening from many angles, reducing assembly effort. This sprinkler is available in various temperature ratings and finishes to meet many design requirements. The recessed pendent should be utilized with a Model V27 recessed escutcheon which provides up to 3/4 in of adjustments.

  • Light, ordinary
  • 3 mm glass bulb
  • Low silicon bronze load screw
  • Low silicon bronze pipe cap
  • Beryllium nickel spring
  • Teflon tape seal
  • Stainless steel lodgment spring

Standards/Certifications: cULus, FM approved, LPCB, CE, CCCf, CTP, CCC certified

Applications: For commercial applications
