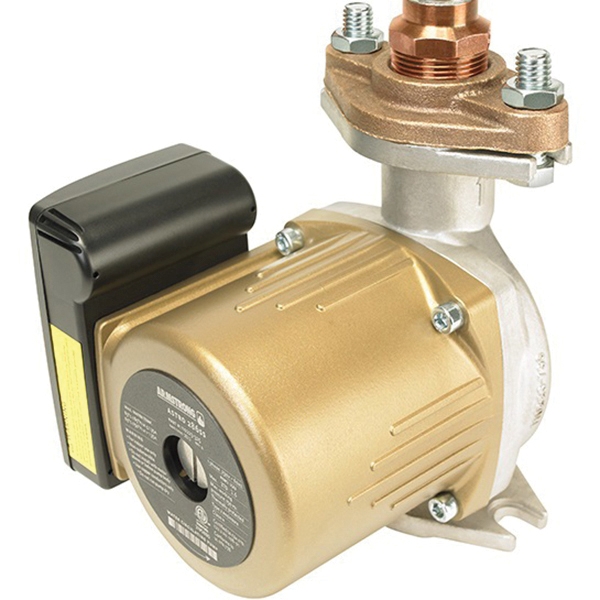

Armstrong 110223-306

Astro 230SS 3-Speed Stainless Steel Circulator Pump, 115 VAC, 1/25 hp, 2800 rpm, 18 gpm, 18.2 ft

  • Manufacturers: Armstrong Pumps
  • Brand Name: Armstrong
  • PN: 110223-306
  • MPN: 110223-306
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      0.81 A
Connection Size      :      (2) 1/2 in Dia Bolt Hole Flange
Dimension      :      6 in W x 6.38 in H
Flow Rate      :      18 gpm
Frequency Rating      :      60 Hz
HP Rating      :      1/25 hp
Impeller Material      :      Noryl
Item Name      :      Circulator Pump
Material      :      Stainless Steel
Maximum Feet of Head      :      18.2 ft
Model      :      Astro 230SS
Phase      :      1 ph
Pressure Rating      :      150 psi
RPM      :      2800 rpm
Series      :      Astro 2
Temperature Rating      :      230 deg F
Type      :      3-Speed
Voltage Rating      :      115 VAC
Wattage      :      97 W

The Armstrong Astro 2 circulators are designed for quiet operation and zero maintenance. In combination with cast iron volutes the Astro 2 line is intended to circulate water or ethylene-glycol solutions in closed hydronic or solar heating systems. The Astro 2 line is available in three volute materials for residential, small industrial, and commercial applications.

  • Adjustable performance, 3-field selectable speeds to cover a wide performance range
  • Easy electrical connection - simple terminal strip for fast and easy wiring
  • 3-field selectable speeds allow replacement of a wide variety of fixed-speed circulators
  • Cross reference for most popular models affixed to packaging saves time when installing a replacement circulator
  • E-coating on the inside of cast iron volutes provides enhanced corrosion protection for improved reliability
  • Flange-to-flange compatibility offers quick and easy exchange of competing models
  • Large wiring box and convenient plug-in terminal strip save time
  • High-flow check valve, is pre-installed for convenience, where the installation does not call for a check valve, it can be removed in seconds
  • Ceramic shaft
  • Ceramic bearings
  • EPDM gasket

Standards/Certifications: cETLus Intertek listed, NSF 372 certified

Applications: For residential heating or cooling, potable water, water conservations

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS2564_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS2564_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS2564_Spec.pdf
