Victaulic S381PCQ410

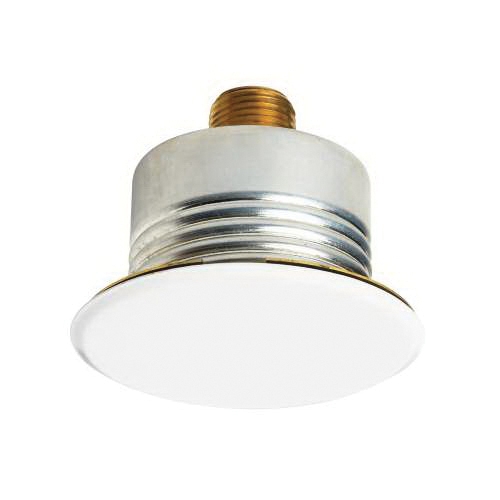

FireLock V3802 Plain Brass Quick Response Adjustable Concealed Pendent Sprinkler, 1/2 in NPT, 155 deg F, 5.6 K-Factor

  • Manufacturers: Victaulic
  • Brand Name: Victaulic
  • PN: S38-1PC-Q410
  • MPN: S381PCQ410
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Type      :      NPT
Dimension      :      2-13/16 in H
Finish      :      Plain Brass
Item Name      :      Adjustable Concealed Pendent Sprinkler
K-Factor      :      5.6
Model      :      V3802
Nominal Size      :      1/2 in
Orifice Size      :      1/2 in
Pressure Rating      :      250, 175 psi
Sub Brand      :      FireLock
Temperature Rating      :      155 deg F
Type      :      Quick Response
  • Light, ordinary
  • 3 mm glass bulb with glycerin solution
  • Bronze load screw
  • Bronze pipe cap
  • Beryllium nickel spring
  • Teflon tape seal
  • Stainless steel pins
  • Cold-rolled steel, zinc chrome-plated cup
  • Brass cover/escutcheon
  • Stainless steel lodgment spring
  • Polyethylene protective cap

Standards/Certifications: cULus, FM approved, LPCB 104-1a/02, CCCf, CE 0832, CCC certified

Applications: For commercial applications
