Spirax-Sarco B1H12534

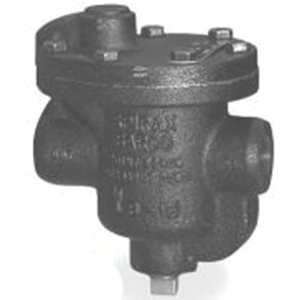

B1H Cast Iron Inverted Bucket Steam Trap, 3/4 in, NPT, 125 psig

  • Manufacturers: Spirax-Sarco Engineering
  • Brand Name: Spirax-Sarco
  • PN: SAB1H12534
  • MPN: B1H12534
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Type      :      NPT
Dimension      :      5 in L x 4 in W
Item Name      :      Inverted Bucket Steam Trap
Material      :      Cast Iron
Model      :      B1H
Nominal Size      :      3/4 in
Pressure Rating      :      125 psig
Series      :      B1
Temperature Rating      :      450 deg F

Spirax-Sarco inverted bucket traps are well-known for their durability and efficiency.

  • The type B bucket traps has horizontal pipe connections

Applications: For steam main drip stations, laundry equipment, industrial dryers and storage tanks

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS25858_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS25858_Install.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS25858_Spec.pdf
