BrassCraft SCR14X C

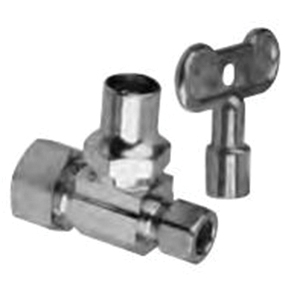

Brass Multi-Turn Straight Supply Stop Valve with Loose Key, 5/8 x 3/8 in, Nominal Compression x Compression, Chrome-Plated, Lead-Free

  • Manufacturers: Brasscraft Manufacturing
  • Brand Name: BrassCraft
  • PN: SCR14X C
  • MPN: SCR14X C
  • UPC: 026613138862
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      5/8 x 3/8 in
Connection Type      :      Nominal Compression x Compression
Dimension      :      2-1/4 in L
Finish      :      Chrome-Plated
Handle Type      :      Loose Key
Item Name      :      Straight Supply Stop Valve with Loose Key
Material      :      Brass
Pressure Rating      :      125 psi
Stem Material      :      Brass
Temperature Rating      :      40 - 140 deg F
Type      :      Multi-Turn
  • Lead-free
  • Machined, 1-piece body construction for strength, durability and long-lasting performance
  • Large loose key handle provides a secure-grip for trouble-free on/off operation
  • Removable loose key handle helps protect against accidental stop operation during rough-ins and general use
  • Compliant brass lock shield stem, packing nut, compression sleeve, nitrile or EPDM rubber bib and packing washers, brass compression nut
  • Designed, machined and assembled in the USA

Standards/Certifications: ASME A112.18.1/CSA B125.1, ANSI/NSF 61 and 372 certified, IAPMO, UPC listed

Applications: For potable water distribution systems
