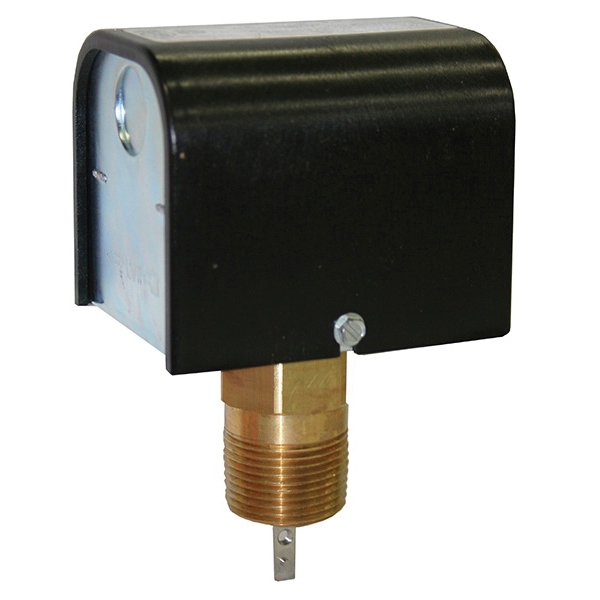

McDonnell & Miller 114400
FS4-3 General Purpose Liquid Flow Switch, 1 in NPT, 120/240 VAC, SPDT
- Manufacturers: Xylem
- Brand Name: McDonnell & Miller
- PN: MM114400
- MPN: 114400
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Action | : | Snap |
| Amperage Rating | : | 7.4 A at 120 VAC, 3.7 A at 240 VAC Full Load, 44.4 A at 120 VAC, 22.2 A at 240 VAC Locked Rotor |
| Connection Size | : | 1 in NPT |
| Contact Configuration | : | SPDT |
| Dimension | : | 3 in W x 8-7/16 in H x 3-3/8 in D |
| Enclosure | : | NEMA 1 |
| Frequency Rating | : | 50/60 Hz |
| Item Name | : | Liquid Flow Switch |
| Model | : | FS4-3 |
| Pressure Rating | : | 160 psi |
| Temperature Rating | : | 32 - 300 deg F |
| Type | : | General Purpose |
| Voltage Rating | : | 120/240 VAC |
- Universal design serves the widest variety of applications
- 2-electrical knockouts allows connection from either end
- Sensitivity adjusting screw makes flow adjustment easy
- Hardened stainless steel bearings minimize friction
- Sealed monel bellows
- Includes (4) 1, 2, 3 and 6 in stainless steel paddles
- 125 VA pilot-duty
Standards/Certifications: cULus listed, CSA certified
Applications: For starting or stopping electrically operated equipment such as signal lights, alarms, motors, automatic burners, metering devices and others
