Lochinvar SIT040

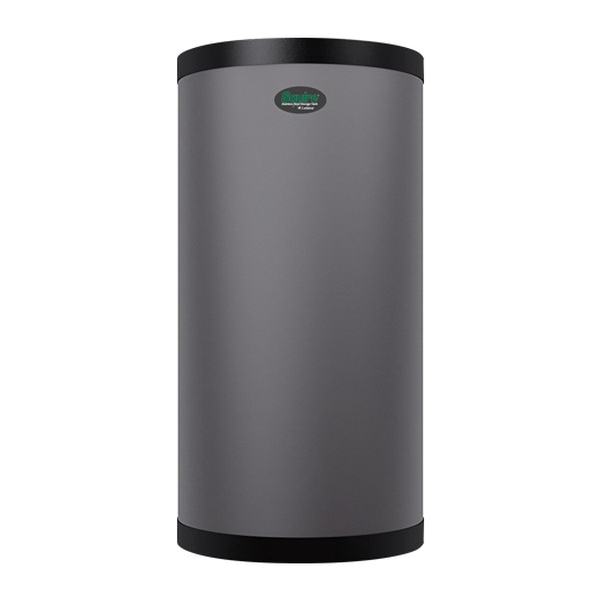

Squire Stainless Steel Indirect Water Heater, 115000 Btu/hr, 14 gpm

  • Manufacturers: A. O. Smith Corporation
  • Brand Name: Lochinvar
  • PN: SIT040
  • MPN: SIT040
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
BTU Rating      :      115000 Btu/hr
Connection Size      :      1 in Water, 1 in Coil
Dimension      :      20 in W x 55-1/2 in H
First Hour Delivery      :      208 gal
Flow Rate      :      14 gpm
Item Name      :      Indirect Water Heater
Material      :      Stainless Steel
Standby Loss      :      0.9 deg/hr
Sub Brand      :      Squire

The Squire uses the power and efficiency of the boiler that heats the home to generate domestic hot water for showers, dishwashing, clothes washing, etc.

  • Fully welded construction
  • 100% stainless steel construction
  • 316L passivated stainless steel tank
  • 316L stainless steel heating coil
  • 1 in boiler supply and return connections
  • 1 in domestic water connections
  • Non-HCFC high density foam insulation
  • Temperature and pressure relief valve
  • Factory supplied tank sensor
  • Limited lifetime, 5-years limited tank warranty

Standards/Certifications: AHRI certified, cCSAus certified

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS26793_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS26793_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS26793_Spec.pdf
