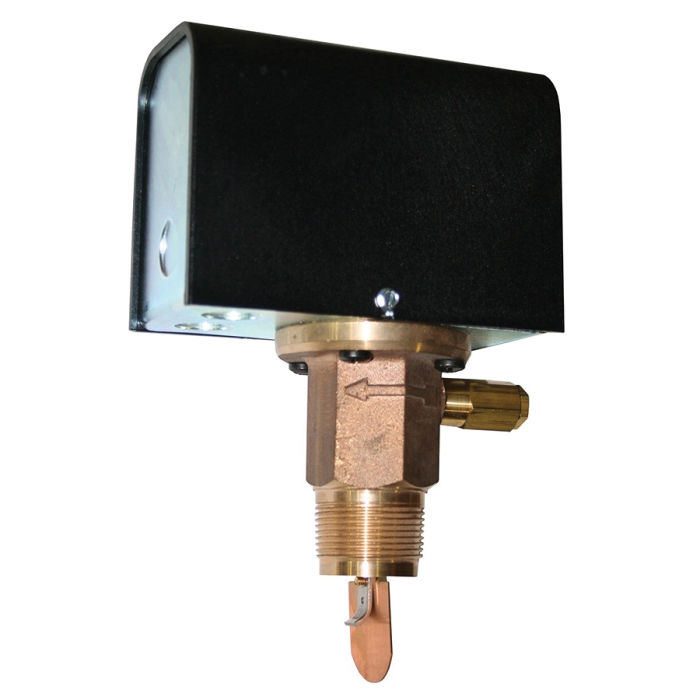

McDonnell & Miller 119700
FS7-4 Industrial Liquid Flow Switch, 1-1/4 in NPT, 120/240 VAC, SPDT
- Manufacturers: Xylem
- Brand Name: McDonnell & Miller
- PN: MM119700
- MPN: 119700
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
| Action | : | Snap |
| Amperage Rating | : | 7.4 A at 120 VAC, 3.7 A at 240 VAC Full Load, 44.4 A at 120 VAC, 22.2 A at 240 VAC Locked Rotor |
| Connection Size | : | 1-1/4 in NPT |
| Contact Configuration | : | SPDT |
| Dimension | : | 5-13/16 in W x 9-1/2 in H x 2-7/8 in D |
| Enclosure | : | NEMA 1 |
| Frequency Rating | : | 50/60 Hz |
| Item Name | : | Liquid Flow Switch |
| Model | : | FS7-4 |
| Pressure Rating | : | 300 psi |
| Temperature Rating | : | 32 - 300 deg F |
| Type | : | Industrial |
| Voltage Rating | : | 120/240 VAC |
- Universal design serves the widest variety of large pipe applications, including heating and hydronic systems, air conditioning, refrigeration and process work
- Brass with sealed tube construction
- Magnetic switching mechanism eliminates need for bellows
- Sensitivity adjusting screw makes flow adjustment easy
- Paddles can be trimmed to suit application needs
- 125 VA pilot-duty
Standards/Certifications: cULus listed, CSA certified
Applications: For heating and hydronic systems, air conditioning, refrigeration and process work
