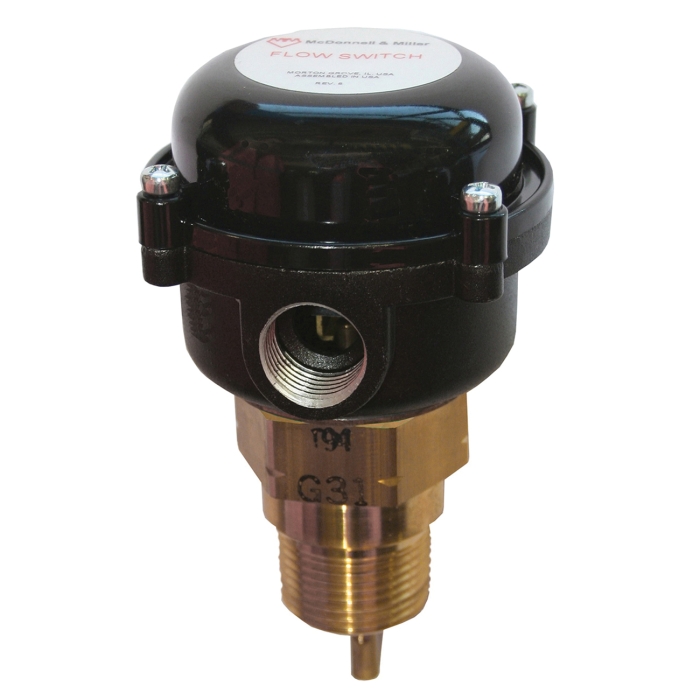

McDonnell & Miller 120601
FS8-W General Purpose Liquid Flow Switch, 1 in NPT, 120/240 VAC, SPDT
- Manufacturers: Xylem
- Brand Name: McDonnell & Miller
- PN: MM120601
- MPN: 120601
- Min. Order Qty: 1
- Qty. Interval: 1
-
Availability:
- Branch Availability
-
Price:
Action | : | Snap |
Amperage Rating | : | 7.4 A at 120 VAC, 3.7 A at 240 VAC Full Load, 44.4 A at 120 VAC, 22.2 A at 240 VAC Locked Rotor |
Connection Size | : | 1 in NPT |
Contact Configuration | : | SPDT |
Dimension | : | 8-3/8 in H x 3-1/4 in Dia |
Enclosure | : | NEMA 4X |
Frequency Rating | : | 50/60 Hz |
Item Name | : | Liquid Flow Switch |
Model | : | FS8-W |
Pressure Rating | : | 160 psi |
Temperature Rating | : | 32 - 225 deg F |
Type | : | General Purpose |
Voltage Rating | : | 120/240 VAC |
- Sealed monel bellows
- Includes (4) 1, 2, 3 and 6 in stainless steel paddles
- Sensitivity adjusting screw makes flow adjustment easy
- 125 VA pilot-duty
Standards/Certifications: cULus listed, CSA certified
Applications: For general purpose applications with environmental exposure, or those requiring a water-tight, dust-tight
