Honeywell V8043E-1061

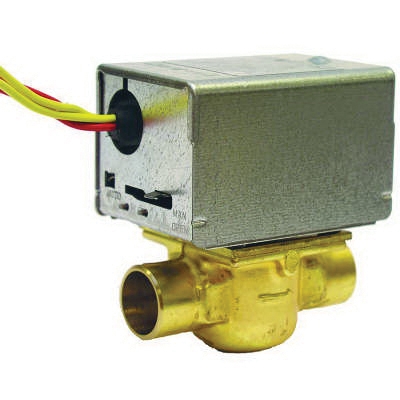

V8043E Brass 2-Position Normally Closed Zone Valve, 3/4 in, Sweat

  • Manufacturers: Honeywell
  • Brand Name: Honeywell
  • PN: V8043E-1061
  • MPN: V8043E-1061
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Ball Material      :      Buna-N Rubber
Connection Size      :      3/4 in
Connection Type      :      Sweat
Dimension      :      3-1/2 in L x 4 in H
Flow Co-Efficient      :      8 Cv
Frequency Rating      :      50/60 Hz
Item Name      :      Zone Valve
Material      :      Brass
Model      :      V8043E
Pressure Rating      :      125 psi Static, 8 psi Differential
Seat Material      :      Brass
Stem Material      :      Stainless Steel
Temperature Rating      :      125 deg F Ambient
Type      :      2-Position, Normally Closed
Voltage Rating      :      24 VAC
  • Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored
  • Compact construction for easy installation
  • Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system
  • Actuator motor may be replaced without removing the valve body or draining the system
  • Body pattern: 2-way straight-through
  • 125 psi static pressure

Standards/Certifications: UL listed

Applications: For hydronic control systems
