Woodford R34-2
Send Print
  1. pin-int

Woodford R34-2

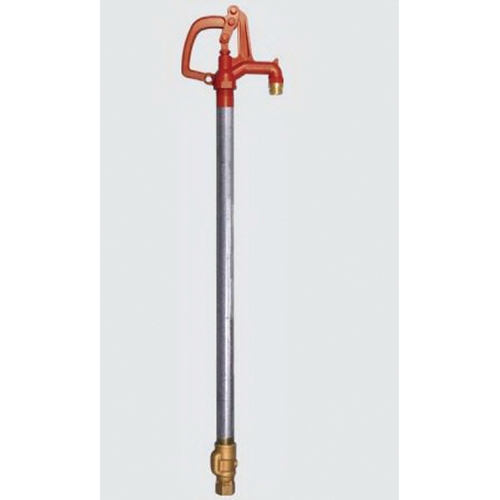

R34 Metal Freezeless Yard Hydrant, 3/4 in, FNPT, 2 ft Bury

  • Manufacturers: Woodford
  • Brand Name: Woodford
  • PN: WOR34.2
  • MPN: R34-2
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Bury Depth      :      2 ft
Connection Size      :      3/4 in
Connection Type      :      FNPT
Dimension      :      57 in L
Item Name      :      Freezeless Yard Hydrant
Material      :      Metal
Model      :      R34
Pressure Rating      :      125 psi
Temperature Rating      :      120 deg F

The Woodford R34 freezeless yard hydrant is intended for irrigation purposes and offers immediate water flow even in sub-zero temperatures. The R34 can be used for many applications such as filling field spray equipment, cleaning equipment or tools, livestock watering, garden and lawn care. The shut-off valve for the hydrant is below the frost line when installed properly, which allows the water in the standpipe to drain out a hole in the valve body. When the hydrant is shut-off, and all devices removed from nozzle, the hydrant will drain and not freeze.

  • 2 ft bury depth
  • Head and handle - ductile iron
  • Valve seat - permanent brass valve body with large hemispherical seating surface
  • Operation - 90 deg handle lift for full-on
  • Nozzle - 3/4 in brass hose nozzle
  • Casing - 1 in galvanized steel pipe
  • Operating rod - 3/8 in steel rod
  • Adjustable pivot block - provides easy and positive adjustment of the lever lock in tension
  • Tamper-proof lock - can be padlocked in closed position
  • Made in USA
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS29656_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS29656_Spec.pdf
