Woodford Y30BR-3

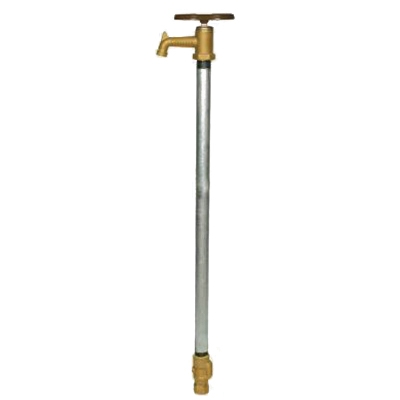

Y30 Freezeless Post Yard Hydrant, 3/4 in, FNPT, 3 ft Bury

  • Manufacturers: Woodford
  • Brand Name: Woodford
  • PN: WOY30BR-3
  • MPN: Y30BR-3
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Bury Depth      :      3 ft
Connection Size      :      3/4 in
Connection Type      :      FNPT
Dimension      :      60 in L
Item Name      :      Freezeless Post Yard Hydrant
Model      :      Y30
Pressure Rating      :      125 psi
Temperature Rating      :      120 deg F
  • 3 ft bury depth
  • 1-piece variable-flow plunger - large cushion type seal for longer-life is not easily damaged and assures shut-off even when foreign particles are present
  • Automatic drain feature - plunger opens drain to prevent freezing
  • Replacement parts - head nut assembly can be removed for ready access to internal parts
  • Packing - EPDM rubber with adjustable packing nut
  • Valve seat - permanent type brass valve body with hemispherical seating surface
  • Operation - oval, metal wheel handle
  • Brass head casting finish
  • Casing - 1 in galvanized steel pipe
  • Operating rod: 3/8 in galvanized steel pipe
  • Drain hole - 1/8 in NPT
  • Nozzle - 3/4 in brass male hose nozzle

Applications: For irrigation purposes on golf courses, in parks and recreation areas and landscaped areas around buildings
