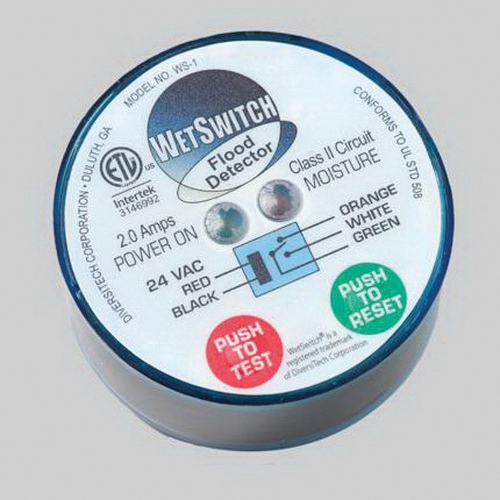

DiversiTech WS-1

Wet Switch Flood Detector, 24 VAC, 2 A

  • Manufacturers: DiversiTech Corporation
  • Brand Name: DiversiTech
  • PN: WS-1
  • MPN: WS-1
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      2 A
Item Name      :      Wet Switch Flood Detector
Voltage Rating      :      24 VAC

A solid state control designed to help prevent flooding, damage to carpets, walls, furniture, ceilings, etc. Now has a built-in test and reset button for easier installation. Turns system off when detecting moisture due to condensate or drain leaks. One or two drops will cause Wet Switch to turn off a unit, alerting a serviceman to a moisture problem. A lit LED indicates the wet switch is activated and has turned the unit off. Reset simply by drying the absorbent pad with a paper towel and pressing the reset switch. Connects to 24 VAC. More than one unit may be connected to a system. 2 amp contact rating. Simple 5 wire installation. Sales displays available. ETL listed file number 3146992.

  • Hydrophilic pad
  • Integral feet
  • Stainless steel sensor array
  • Compact package
  • Solid state electronics
  • Double throw relay
  • Multiple unit connectivity

Standards/Certifications: UL, ETL listed

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS8944_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS29726_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS29726_Spec.pdf
