Guardian G1779

AutoFlow 2-Head Deck-Mount Eye/Face Wash

  • Manufacturers: Guardian Equipment
  • Brand Name: Guardian
  • PN: G-1779
  • MPN: G1779
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Dust Cover Type      :      Flip Top
Height      :      15-3/4 in
Item Name      :      Eye/Face Wash
Length      :      13 in
Number of Eye Wash Heads      :      2
Shower Activation      :      90 deg Swing Down
Shower Head Material      :      Polypropylene
Theme/Style      :      AutoFlow
Type      :      Deck-Mount
Width      :      6-1/2 in

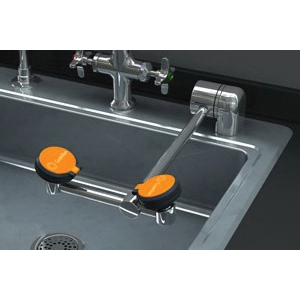

AutoFlow eye/face wash for mounting on counter. Spray heads swing down from storage to operational position, activating water flow. Two FS-Plus spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow.

  • 1/2 in IPS plug-type valve with PTFE coated O-ring seals
  • Swinging head assembly down from storage to operational position opens orifice and activates water flow
  • Unit remains in operation until spray head assembly is returned to storage position
  • Unit is furnished with in-line strainer to protect valve and spray heads from debris in water line
  • Valve is installed in chrome-plated brass housing, unit mounts on countertop behind sink
  • Furnished with mounting hardware for securing unit to counter
  • Polished chrome-plated brass
  • 1/2 in FNPT inlet
  • ANSI compliant identification sign

Standards/Certifications: ANSI Z358.1-2014
