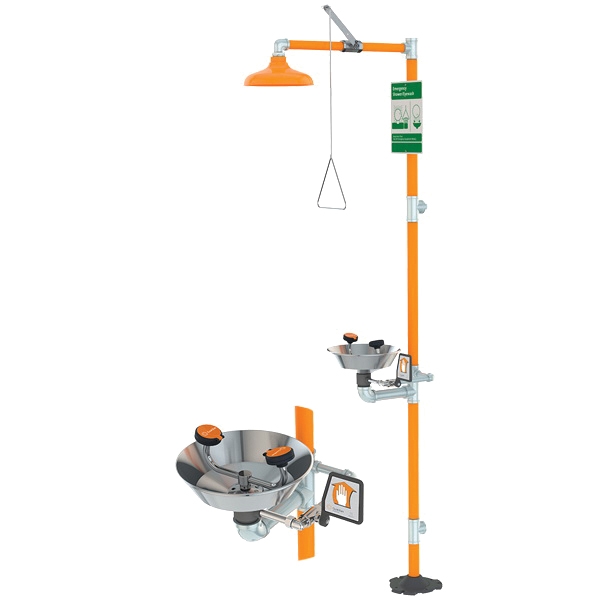

Combination eye/face wash and shower safety station. Eye/face wash features a stainless steel bowl with two large FS-Plus spray-type outlet heads that deliver a flood of water for rinsing eyes and face.

• 10 in Dia orange ABS plastic with 20 gpm flow control
• 1 in IPS chrome-plated brass stay open ball valve
• Furnished with stainless steel actuating arm and 29 in stainless steel pull rod
• 2 FS-Plus spray heads
• Each head has a flip top dust cover, internal flow control and filter to remove impurities from the water-flow
• 11-1/8 in Dia stainless steel eye/face wash bowl
• 1/2 in IPS chrome-plated brass stay open ball valve
• Schedule 40 galvanized steel, furnished with orange polyethylene pipe covers for high visibility and corrosion-resistance
• 1-1/4 in FNPT top or side inlet
• 1-1/4 in FNPT outlet, outlet can be positioned at either 9-1/4 or 19-5/8 in above finished floor by reversing lower pipe nipples
• ANSI specified
• Valve and spray head assemblies are factory assembled and water tested prior to shipment
• Valve is made with chrome-plated brass ball and PTFE seals

Standards/Certifications: ANSI Z358.1-2014, cUPC listed

• Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS16282_Spec.pdf
