T&S Brass B-0504-01

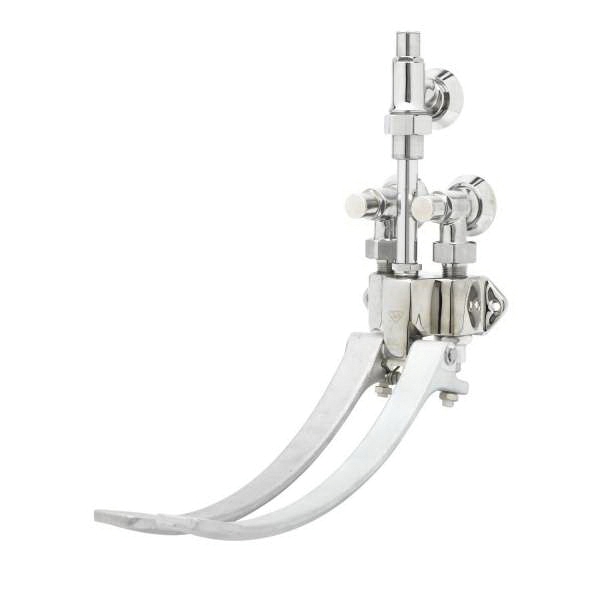

Brass Double Pedal Valve, 1/2 x 3/8 in, Polished Chrome-Plated

  • Manufacturers: T&S Brass
  • Brand Name: T&S Brass
  • PN: TSB050401
  • MPN: B-0504-01
  • UPC: 671262005258
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1/2 x 3/8 in
Connection Type      :      NPT
Finish      :      Polished Chrome
Includes      :      Loose Key Angle Stop and Angle Volume Control
Item Name      :      Double Pedal Valve
Material      :      Brass
Mounting      :      Wall
Pressure Rating      :      20 - 125 psi
Temperature Rating      :      40 - 140 deg F
  • Flip-up long wall mount foot pedal
  • Adjustable height hot and cold pedals
  • Pedal flips up for floor cleaning
  • Self-closing valve
  • 1/2 in NPT female loose key angle stop inlets
  • 3/8 in NPT female loose key angle volume control outlet
  • Polished chrome-plated brass valve and stop bodies and satin finish aluminum pedals
  • Wall mounting screws included
  • 5.49 gpm at 60 psi
  • 1-year limited warranty

Standards/Certifications: ASME A112.18.1, BAA/ARRA, CSA B125.1, ANSI/NSF 372 and 61 certified
