Precision Plumbing Products P1-500

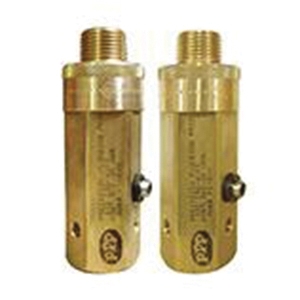

P-1 Automatic Trap Primer Valve, 1/2 x 1/2 in

  • Manufacturers: Precision Plumbing Products
  • Brand Name: Precision Plumbing Products
  • PN: P1-500.12
  • MPN: P1-500
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1/2 x 1/2 in
Connection Type      :      NPT x FNPT
Item Name      :      Trap Primer Valve
Model      :      P-1
Type      :      Automatic
  • The model P-1 trap primer valve is a precision device designed to deliver potable water for 1 - 4 floor drains
  • A pressure drop of 10 psi is required to activate the priming valve
  • The trap primer must be installed on cold fresh water lines of 1-1/2 in diameter or less
  • The valves operating range is 20 - 80 psi

Standards/Certifications: ASSE 1018, CA/VT compliant

Applications: For use with floor drain

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS21387_Instal.pdf
