Sioux Chief 695-01

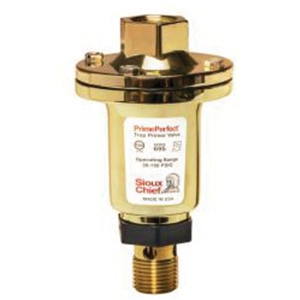

695 Automatic Trap Primer Valve, 1/2 in, MIP

  • Manufacturers: Sioux Chief Manufacturing
  • Brand Name: Sioux Chief
  • PN: SC695-01
  • MPN: 695-01
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1/2 in
Connection Type      :      MIP
Item Name      :      Trap Primer Valve
Length      :      5-1/4 in
Pressure Rating      :      30 - 150 psi
Series      :      695
Type      :      Automatic
Width      :      2-3/4 in

Sioux Chief 695 series PrimePerfect trap primer valves shall be used where replenishment of water in floor drain traps is required. Trap primer valve shall be 1/2 in FIP inlet x 1/2 in MIP outlet. Automatic trap primer valve shall activate with a 10 psig pressure drop between 30 to 150 psig. Water release shall be factory set. Trap primer valve shall have large port openings.

Standards/Certifications: ASSE certified to the ASSE 1018, UPC/IAPMO listed
