SharkBite 25096

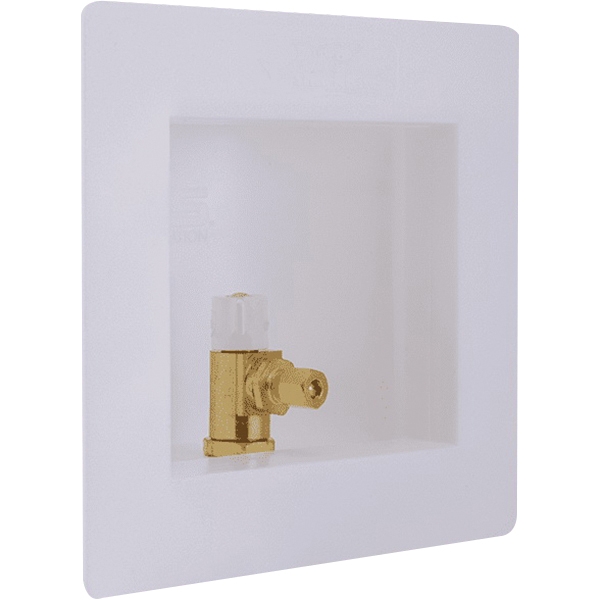

Ice Maker Outlet Box, 1/2 x 1/4 in, Push Fit x Compression

  • Manufacturers: Reliance Worldwide Corporation
  • Brand Name: SharkBite
  • PN: 25096
  • MPN: 25096
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1/2 x 1/4 in
Connection Type      :      Push-Fit x Compression
Includes      :      Lead-Free Quarter-Turn Shut-Off DZR Brass Valve
Item Name      :      Ice Maker Outlet Box
Length      :      8-1/4 in
Width      :      17-15/16 in

The SharkBite ice maker outlet box is integrated with SharkBite ends to allow for quick and easy installation of a water main supply to an appliance. The SharkBite ice maker boxes can be used on copper, CPVC, PEX, and PE-RT.

  • Instant push-fit connection for increased ease-of use - no soldering, clamps, unions or glue required
  • Fittings certified to 200 psi maximum and 200 deg F maximum - proven durability and quality
  • Fits copper tubing, CTS CPVC, PEX and PE-RT pipe - connects all four types in any combination
  • Integral tube liner for PEX installations - means no loose components and ensures a secure, reliable connection

Standards/Certifications: ASME A112.18.6, CSA B125.6, ANSI/NSF/CAN 61, ANSI/NSF 372 certified

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS4537_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS4537_Spec.pdf
