Sioux Chief 505-29

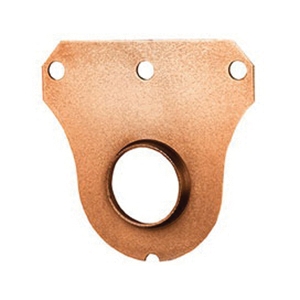

Solder Strap 17 ga Copper-Plated Steel Flat Bracket, 1/2 in CTS

  • Manufacturers: Sioux Chief Manufacturing
  • Brand Name: Sioux Chief
  • PN: SC505-29
  • MPN: 505-29
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      1/2 in
Connection Type      :      CTS
Finish      :      Copper-Plated
Height      :      1.844 in
Item Name      :      Bracket
Length      :      0.22 in
Material      :      17 ga Steel
Packaging Type      :      Bulk
Sub Brand      :      Solder Strap
Type      :      Flat
Width      :      1.906 in

Sioux Chief 505 series copper eared tube strap shall be used where necessary to support copper CTS in piping systems. Strap can be fastened directly to studs or joists or secured to either copper-plated or galvanized-plated brackets when position of the tube falls within the stud or joist cavity. Pre-drilled, 1/8 in diameter mounting holes are provided and designed to align with most conventional support brackets. Strap is to be made of 17 ga copper-plated steel. Strap can also be staked onto preformed copper fittings such as Sioux Chief's stub out elbow #630X246E or can be used as a bottom plate to secure vertical risers.

  • 1/8 in mounting holes align with most conventional brackets
  • Spot solder to copper tube (heat the tube, not the strap)

Applications: For support copper CTS in piping systems
