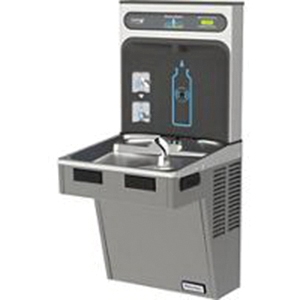

Halsey Taylor HTHB-HAC8PV-NF

HydroBoost 115 V Single Non-Filtered Water Cooler with Bottle Filling Station, 8 gph, Platinum Vinyl

  • Manufacturers: Halsey Taylor
  • Brand Name: Halsey Taylor
  • PN: HTHBHAC8-PV
  • MPN: HTHB-HAC8PV-NF
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Bubbler Style      :      Double
Chilling Capacity      :      8 gph
Finish      :      Platinum Vinyl
Frequency Rating      :      60 Hz
Full Load Amp      :      6 A
Height      :      39-3/4 in
Indoor/Outdoor      :      Indoor
Item Name      :      Water Cooler with Bottle Filling Station
Length      :      17-7/8 in
Mounting      :      Wall
Number of Stations      :      1
Power Rating      :      370 W
Refrigerant      :      R-134a
Sub Brand      :      HydroBoost
Type      :      Single, Non-Filtered
Voltage Rating      :      115 V
Width      :      18-1/2 in

The Halsey Taylor HydroBoost bottle filling station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Complete cooler and bottle filling station in a consolidated space saving ADA compliant design. Bottle filler features sanitary no-touch sensor activation with automatic 20s shut-off timer.

  • Touchless, sensor-activated bottle filler, designed for easy use, mechanically-activated bubbler continues to supply water in service disruptions
  • Fill rate is 1.1 gpm
  • Green counter informs user of number of 20 oz plastic water bottles saved from waste
  • Laminar flow provides clean fill with minimal splash
  • Silver ion anti-microbial protection on key plastic components to inhibit the growth of mold and mildew
  • Real drain system eliminates standing water
  • Exclusive double bubbler which projects two separate streams that converge to form a fuller, more satisfying drink
  • Mechanically activated
  • Sanitary sensor activated
  • Green counter
  • Laminar-flow
  • Anti-microbial
  • Real drain

Standards/Certifications: ADA complaint and ICC A117.1, ASME A112.19.3, CSA B45.4, buy american act, CAN/CSA C22.2 No. 120, GreenSpec, NSF 372 and 61 certified, UL 399 listed

Applications: For schools, hospitality, indoor gym/fitness, small office building, large office building, healthcare facilities, government/municipal, public facilities

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS17211_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS17211_Spec.pdf
