Guardian G1902P

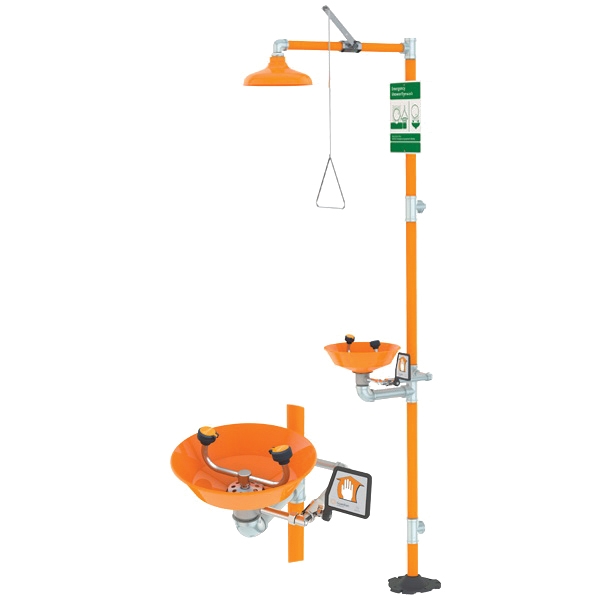

ABS Plastic Combination Eyewash and Shower Safety Station, 20 gpm

  • Manufacturers: Guardian Equipment
  • Brand Name: Guardian
  • PN: G1902P
  • MPN: G1902P
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Bowl Material      :      ABS
Dust Cover Type      :      Flip Top
Eye Wash Activation      :      Flag Push Handle
Flow Rate      :      20 gpm
Height      :      94-3/4 in
Item Name      :      Combination Eyewash and Shower Safety Station
Length      :      24 in
Number of Eye Wash Heads      :      2
Shower Activation      :      Pull Rod
Shower Head Material      :      ABS

Combination eyewash and shower safety station. Eyewash features a plastic bowl with two GS-plus spray type outlet heads that deliver a flood of water for rinsing eyes.

  • Shower head - 10 in Dia orange ABS plastic with 20 gpm flow control
  • Shower valve - 1 in IPS chrome-plated brass stay-open ball valve, valve is US-made with chrome-plated brass ball and PTFE seals, furnished with stainless steel actuating arm and 29 in stainless steel pull rod
  • Spray head assembly - two GS-Plus spray heads, each head has a flip top dust cover, internal flow control and filter to remove impurities from water flow
  • Eyewash bowl - 11-3/4 in Dia orange ABS plastic
  • Eyewash valve - 1/2 in IPS chrome-plated brass stay-open ball valve, valve is US-made with chrome-plated brass ball and PTFE seals
  • Pipe and fittings - Schedule 40 galvanized steel, furnished with orange polyethylene pipe covers for high visibility and corrosion-resistance
  • Supply - 1-1/4 in NPT female top or side inlet
  • Waste - 1-1/4 in NPT female outlet, outlet can be positioned at either 9-1/4 or 19-5/8 in above finished floor by reversing lower pipe nipples

Standards/Certifications: ANSI standard
