DiversiTech CP-16
Send Print
  1. pin-int

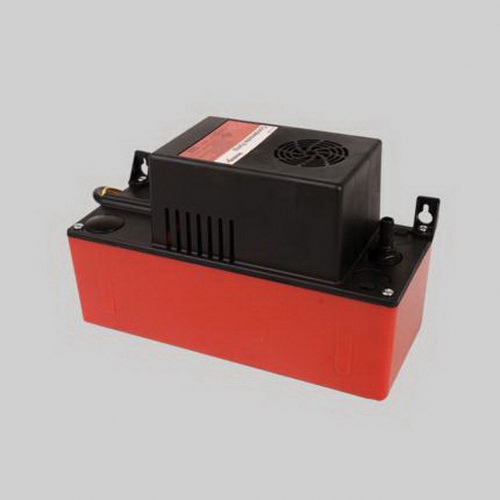

DiversiTech CP-16

CP General Purpose Condensate Pump, 120 VAC, 1.2 gpm, 16 ft

  • Manufacturers: DiversiTech Corporation
  • Brand Name: DiversiTech
  • PN: CP-16
  • MPN: CP-16
  • UPC: 095247123988
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      1.9 A
Dimension      :      4-1/2 in W x 6-1/2 in H x 10-3/4 in D
Flow Rate      :      1.2 gpm
Frequency Rating      :      60 Hz
Item Name      :      Condensate Pump
Maximum Feet of Head      :      16 ft
Series      :      CP
Temperature Rating      :      160 deg F
Type      :      General Purpose
Voltage Rating      :      120 VAC

The DiversiTech CP-16 condensate pump is an economical alternative that's based off of the proven CP-22 design. More compact than the CP-22, it's designed to lift to a maximum of 16 ft. The CP-16 shares many of the great features of the CP-22, including hang tabs, 4 inlet holes, float switch, overflow switch, and a check valve.

  • USA 3 prong molded plug
  • Most Economical
  • Instruction booklet, metal hang tabs, plug protector, 4 ft remote shut-off leads with insulated terminals and (3) polyethylene inlet covers
  • 2/5 gal capacity

Standards/Certifications: UL E253155 and E258186 listed

Applications: For air conditioners and dehumidifiers

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS13973_Cat.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS13973_Spec.pdf
