DiversiTech

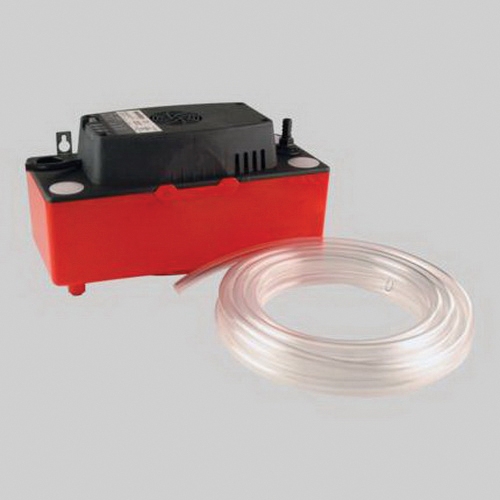

CP General Purpose Condensate Pump with Tubing, 120 VAC, 1.6 gpm, 22 ft

  • Manufacturers: DiversiTech Corporation
  • Brand Name: DiversiTech
  • PN: ULTRACP-22T
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      1.9 A
Connection Size      :      3/8 in
Dimension      :      11.8 in W x 6.7 in H x 5.9 in D
Flow Rate      :      1.6 gpm
Frequency Rating      :      60 Hz
Item Name      :      Condensate Pump with Tubing
Maximum Feet of Head      :      22 ft
Series      :      CP
Temperature Rating      :      160 deg F
Type      :      General Purpose
Voltage Rating      :      120 VAC
  • Suitable for use with condensate from air conditioning applications
  • 22 ft of lift compared to the typical 20 ft
  • Features include vibration dampening feet and motor mounts, metal hang tabs, four inlet holes, a clear indicator display, a float switch and check valve
  • Integrating the CP-22 into your system is easy
  • 1/4 in quick-connect terminals provide easy connection to the built-in overflow switch
  • 3-terminals are provided allowing flexibility to connect air handler shut down and optional alarm as needed
  • With 20 ft of 3/8 in tubing
  • Instruction booklet, metal hang tabs, plug protector, 4 ft remote shut-off leads with insulated terminals and (3) polyethylene inlet covers
  • 1/2 gal capacity

Standards/Certifications: UL E253155 and E258186 listed

Applications: For air conditioners and dehumidifiers

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS13973_Cat.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS13973_Spec.pdf
