Cascade CST - SL - 700

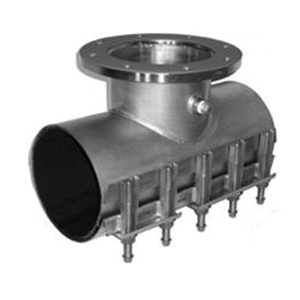

Stainless Steel Reducing Tapping Sleeve with Low Alloy Flange, 6 x 4 in

  • Manufacturers: Cascade Waterworks Manufacturing
  • Brand Name: Cascade
  • PN: CSTSL-700-4LA
  • MPN: CST - SL - 700
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Size      :      6 x 4 in
Item Name      :      Reducing Tapping Sleeve with Low Alloy Flange
Material      :      Stainless Steel
Outside Diameter      :      6.6 - 7 in
  • Lighter option with stud and receiver bar assemblies
  • Easy-to-install - lighter and fewer parts than mechanical joint iron tapping sleeves
  • All branch sections double welded to both shell and flange - TIG inside/MIG outside
  • All weldments fully chemically passivated in accordance with ASTM A380
  • Full hoop support and double O-ring branch seal
  • Each sleeve hydrostatically tested to 1.5 times RWP at factory
  • Each sleeve serial numbered - certified test records available
  • All sleeves provided with test outlet
  • Branch ID 1/2 in larger than nominal size
  • Accepts full size shell cutter
  • Broad range of options - stainless steel or low alloy steel flanges, special steels - T304L, T316 or T316L
  • Special application pressure ratings available
  • 10-years warranty

Standards/Certifications: AWWA C207, AWWA C223, ANSI/NSF 61 certified
