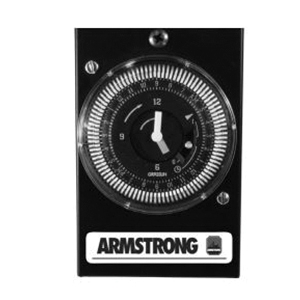

Armstrong 810123-130

Black Analog 24 hr Timer, 3/4 in Spade Terminal, 110 - 120 VAC

  • Manufacturers: Armstrong Pumps
  • Brand Name: Armstrong
  • PN: 810123-130
  • MPN: 810123-130
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Type      :      Spade Terminal
Dimension      :      2.74 in L x 1-1/2 in W x 4.23 in H
Finish      :      Black
Frequency Rating      :      60 Hz
HP Rating      :      1 hp at 120 VAC, 2 hp at 240 VAC Inductive
Item Name      :      24 hr Timer
Size      :      3/4 in
Temperature Rating      :      -40 to 180 deg F
Type      :      Analog
Voltage Rating      :      110 - 120 VAC
Wattage      :      0.5 W
  • 1/4 hr shortest switching interval
  • Timer, on override, off override manual switch modes
  • Spot switch rating
  • 21 A Resistive
  • 1350 W tungsten

Applications: For time actuated on/off pump control and Astro 2 series hot water re-circulation system

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS10269_Cat.pdf
  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS10269_Instal.pdf
