Rectorseal 83809

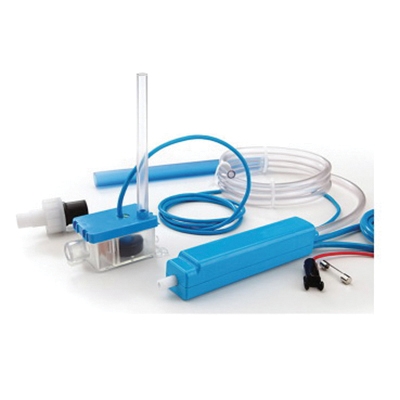

Aspen ASPMAUNI Mini-Split Condensate Pump Kit, 100 - 250 V, 3.2 gph, 3.3 ft

  • Manufacturers: Rectorseal Corporation
  • Brand Name: Rectorseal
  • PN: RE83809
  • MPN: 83809
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      0.2 A
Cord Length      :      6 ft
Dimension      :      6-1/2 in W x 1-1/8 in H x 1-1/8 in D
Flow Rate      :      3.2 gph
Frequency Rating      :      60 Hz
Item Name      :      Condensate Pump Kit
Maximum Feet of Head      :      3.3 ft
Model      :      ASPMAUNI
Sub Brand      :      Aspen
Temperature Rating      :      104 deg F
Type      :      Mini-Split
Voltage Rating      :      100 - 250 V
Wattage      :      16 W
  • Ultra slim profile
  • Self-priming
  • Integral hanging loop and separate reservoir facilitates attachment in vertical applications
  • 3 A NC dry contacts rated at 5 A inductive at 230 VAC
  • Fully potted electronics
  • Remote reservoir

Standards/Certifications: cCSAus Certified
