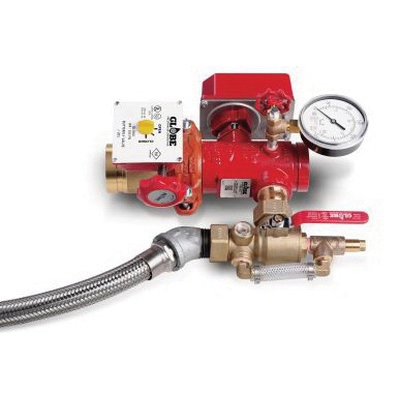

The Globe series "UM" universal manifold is a listed/approved manifold assembly incorporating a flow switch, test and drain valve, system pressure gauge and pressure relief valve. The UM may be ordered with or without an attached butterfly control valve. The UM is rated for a maximum working pressure of 300 psi. It has been engineered to incorporate the above mentioned components in a compact envelope. The test and drain valve contains a test orifice of K2.8 so that it may be utilized for flow testing any system with sprinklers having k-factors of 2.8 or larger. The UM is available in a variety of sizes and end connections to allow for cost effectiveness and ease of connections to check valves, control valves and piping. For sizes 3 in and smaller, an 18 in long stainless steel braided flexible hose is included with the UM for connecting the test and drain valve to a drain stack. The UM may be installed in the vertical (with flow upward) or horizontal orientation.

• Plastic pressure gauge
• Bronze 3-way valve
• Ductile iron flow switch adapter

Standards/Certifications: cULus listed, FM approved

• Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS6104_Spec.pdf
