Honeywell YTH5320R1000/U

FocusPro Non-Programmable Wireless Thermostat Kit, 18 - 30 VAC, Up to 3 Heat/2 Cool Heat Pump or Up to 2 Heat/2 Cool Conventional

  • Manufacturers: Honeywell
  • Brand Name: Honeywell
  • PN: YTH5320R1000
  • MPN: YTH5320R1000/U
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      Cool and Heat Current: 1 A, Fan Current: 0.6 A
Changeover      :      Auto/Manual
Frequency Rating      :      50/60 Hz

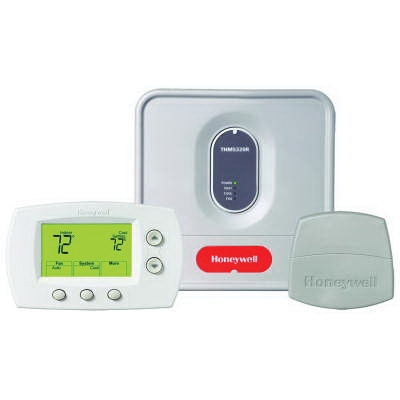

Includes      :      C7735A1000 Return Air Sensor, THM5320R1000 Equipment Interface Module, TH5320R1002 Wireless FocusPRO Non-Programmable Thermostat
Item Name      :      Wireless Thermostat Kit
Power Source      :      Battery
Programmability      :      Non-Programmable
Stages      :      Up to 3 Heat/2 Cool Heat Pump or Up to 2 Heat/2 Cool Conventional
Sub Brand      :      FocusPro
Switch Position      :      HEAT-OFF-COOL-AUTO-EM.HEAT (System), AUTO-ON (Fan)
Temperature Rating      :      32 - 120 deg F
Terminal Designation      :      C, R, RC, RH, W-O/B, W2-Aux/E, Y, Y2, G, L, RAS
Voltage Rating      :      18 - 30 VAC

Everything you need to relocate or upgrade with a non-programmable thermostat without running new wires. Kit options include wireless outdoor sensor, RedLINK Internet gateway for remote access or wireless adapters for working with TrueZone panels.

  • Wireless focusPro thermostat: same great features of the FocusPro thermostat, now wireless, installs in minutes, displays outdoor temperature and humidity, 1-year battery life, 2-months low battery warning and dual-fuel enabled
  • Equipment interface module (EIM): all HVAC equipment is wired to the module, module receives communication from the wireless devices
  • Return air sensor: works with the equipment interface module to maintain safe indoor temperatures if power is lost at the wireless thermostat, maintains 62 deg F for heating and 82 deg F for cooling
  • RedLINK wireless technology: powered by RedLINK reliability, no interference with other wireless devices in the home

Applications: For gas, oil, electric, heat pump, forced warm air, hot water, steam or gravity

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS30518_Install.pdf
