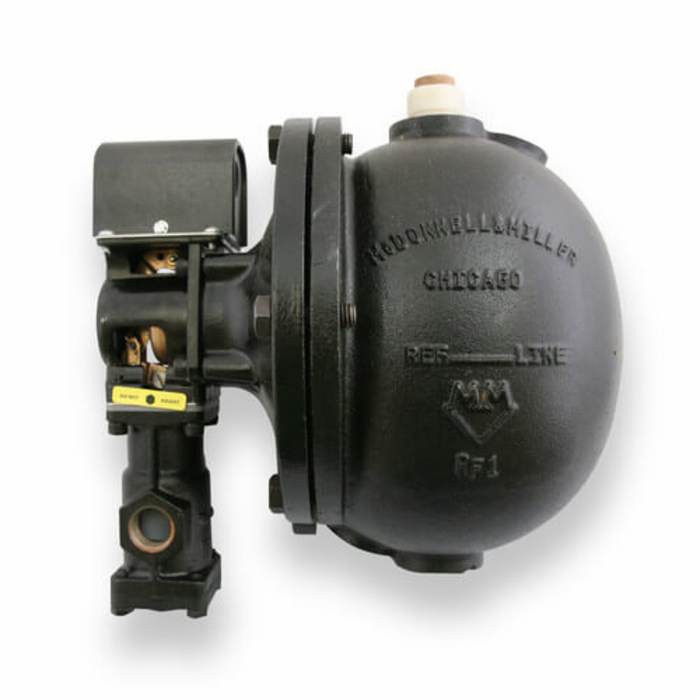

McDonnell & Miller 135000

51-2 Low Water Cut-Off, 3/4 in NPT, 120/240 VAC

  • Manufacturers: Xylem
  • Brand Name: McDonnell & Miller
  • PN: MM135000
  • MPN: 135000
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      10.2 A at 120 VAC, 5.1 A at 240 VAC Full Load, 61.2 A at 120 VAC, 30.6 A at 240 VAC Locked Rotor
Connection Size      :      3/4 in
Connection Type      :      NPT
Frequency Rating      :      60 Hz
Item Name      :      Low Water Cut-Off
Model      :      51-2
Pressure Rating      :      150 psi Water
Temperature Rating      :      120 deg F
Voltage Rating      :      120/240 VAC
  • 125 VA pilot-duty rating
  • Quick-change replaceable cartridge valve and strainer
  • Proportional feed action
  • Includes #2 switch

Standards/Certifications: UL listed, CSA certified

Applications: For steam boilers, hot water boilers

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS2975_Cat.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS19898_Spec.pdf
