Potter Roemer 4710030

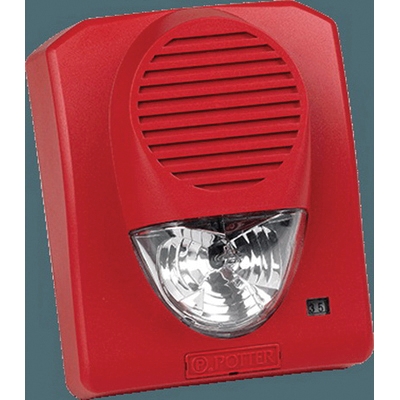

SH-120R Red ABS Housing and Polycarbonate Lens Wall-Mount Weatherproof Horn Strobe, 120 VAC, 5 in L x 2-5/16 in W x 6-5/64 in H

  • Manufacturers: Potter Roemer
  • Brand Name: Potter Roemer
  • PN: SH-120R
  • MPN: 4710030
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Color      :      Red
Dimension      :      5 in L x 2-5/16 in W x 6-5/64 in H
Item Name      :      Weatherproof Horn Strobe
Material      :      ABS Housing, Polycarbonate Lens
Model      :      SH-120R
Mounting      :      Wall
Series      :      SH-120
Temperature Rating      :      -40 to 151 deg F
Voltage Rating      :      120 VAC

The SH-120 series horn strobe is designed to provide audible and/or visual signals for fire and burglar alarm protection systems and notification signals for the purpose of life safety and protection. The SH-120 are operable with a 120 VAC system between 96 VAC and 132 VAC. They can be interfaced with pull stations, flow switches and sprinkler systems for residential, commercial and industrial applications. The SH series combines a selective three horn tone and provides a continuous tone or temporal pattern (code 3) when constant voltage is applied.

  • Outdoor and indoor
  • 6-sound output settings
  • Pre-wire back plate
  • Universal back plate mounting (1-gang, 2-gang, octagon or 4 in square)
  • Single screw mounting
  • Low-current draw
  • BBX-5 weather-proof backbox included
  • 110 cd on axis light output
  • 72/min flash rate

Standards/Certifications: UL listed

Applications: For residential, commercial and industrial applications
