Skinner 089891

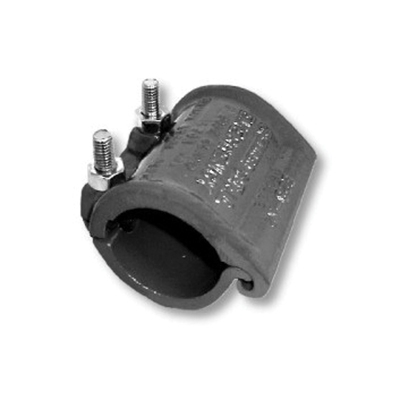

Ductile Iron Emergency Pipe Clamp, 3 in

  • Manufacturers: Skinner
  • Brand Name: Skinner
  • PN: SKEMH
  • MPN: 089891
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Bolt Size      :      3-1/2 x 1/2 in
Connection Size      :      3 in
Item Name      :      Emergency Pipe Clamp
Material      :      Ductile Iron
Number of Bolts      :      2
Pressure Rating      :      500 psi
Torque Rating      :      40 ft-lb
Width      :      4-3/4 in

The emergency pipe clamp is used for repairing pit holes, splits and corrosion leaks in both steel and cast iron pipe lines. The clamp is totally effective under extreme pressure or temperature. For over 100-years, the emergency pipe clamp has been the universal repair clamp worldwide. The clamp can be used on pipes for gas, water, oil or ammonia. The repair lasts for years. The emergency pipe clamp offers triple savings. These savings include the cost of new pipe, the time and labor of replacing old pipe and the expense of shutting down while the work is being done. This can amount to thousands of dollars.

  • This clamp has 40 ft-lb torque and 500 psi working pressure
  • It can withstand temperatures up to 250 deg F

Applications: For steel, ductile and cast iron pipes

  • pdf Installation Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS26806_Instal.pdf
  • pdf Specification Sheet https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS26806_Spec.pdf
  • pdf Technical Drawing https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS26806_Tech.pdf
