Rectorseal 97632
Send Print
  1. pin-int

Rectorseal 97632

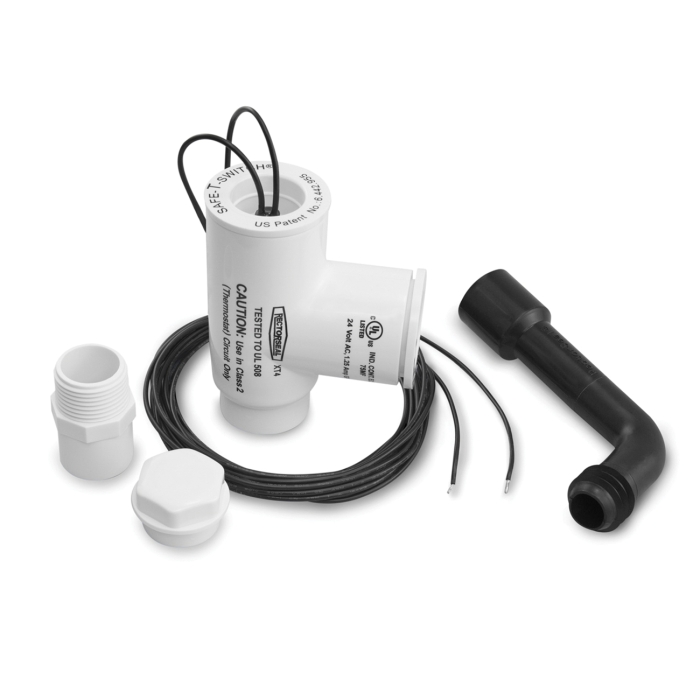

SS-1 Safe-T-Switch Condensate Overflow Switch, 1.25 A, 24 V

  • Manufacturers: Rectorseal Corporation
  • Brand Name: Rectorseal
  • PN: SS-1
  • MPN: 97632
  • UPC: 021449976329
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      1.25 A
Color      :      White
Item Name      :      Condensate Overflow Switch
Material      :      PVC
Model      :      SS-1
Sub Brand      :      Safe-T-Switch

Safe-T-Switch over flow switches SS1 can be installed horizontally or vertically, inline or on the primary pans auxiliary drain outlet by using the included 3/4 in adapter, bushing and cap. It can be installed on a sloping line and does not need to be level or plumb.

  • Condensate overflow switch
  • Magnetic reed switch
  • Install vertically or horizontally
  • Connect to either red or yellow wire
  • New - includes directional cleanout tool to provide cleanout access
  • 72 in 18 AWG cable
  • Electrically potted switch cap assembly
  • 3/4 in slip plug for close coupled application

Standards/Certifications: cULus listed

Applications: For detects clogged a/c condensate drains and shuts off the system to prevent water damage to floors, walls and ceilings

  • pdf Catalog https://www.plumbers-supply-co.com//ASSETS/DOCUMENTS/ITEMS/EN/UNI-PS22767_Cat.pdf
