Rectorseal 97637

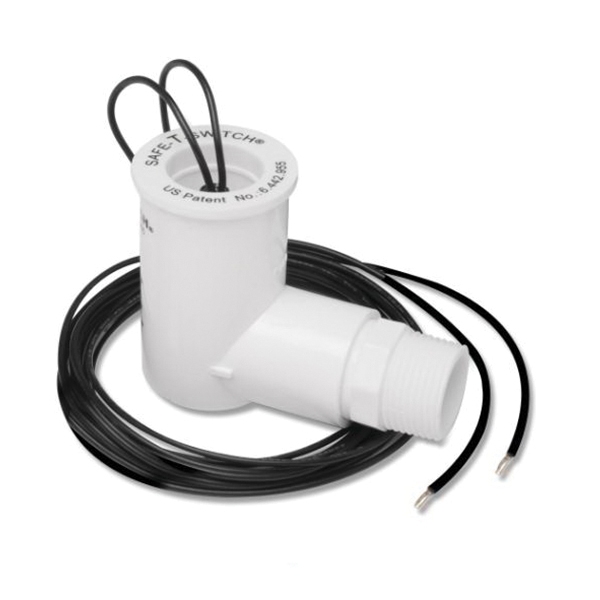

SS-2 Safe-T-Switch Condensate Overflow Switch, 1.25 A, 24 V

  • Manufacturers: Rectorseal Corporation
  • Brand Name: Rectorseal
  • PN: SS-2
  • MPN: 97637
  • UPC: 021449976374
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Amperage Rating      :      1.25 A
Color      :      White
Dimension      :      2-3/8 in L x 2-9/16 in H
Item Name      :      Condensate Overflow Switch
Material      :      PVC
Model      :      SS-2
Sub Brand      :      Safe-T-Switch
Voltage Rating      :      24 V

Safe-T-Switch SS2 detects a clogged A/C condensate drain and shuts off the system. The SS2 can be installed on the auxiliary outlet of the primary drain pan. The patented magnetic reed switch allows it to be installed off center and still function correctly. The SS2 also provides easy access to the switch and the primary drain line.

  • 72 in 18 AWG cable
  • Electrically potted switch cap assembly

Standards/Certifications: cULus listed

Applications: For detects clogged A/C condensate drains and shuts off the system
