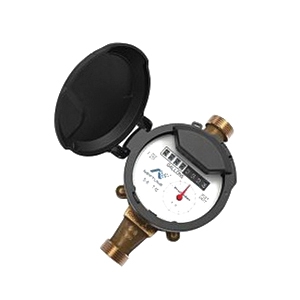

Neptune T-10.5/8X3/4

Water Meter, 5/8 x 3/4 in, NPSM

  • Manufacturers: Neptune Technology Group
  • Brand Name: Neptune
  • PN: T-10.5/8X3/4
  • MPN: T-10.5/8X3/4
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Availability: loading
  • 89 4.4 Branch Availability
Connection Type      :      NPSM
Dimension      :      7-1/2 in L x 3-5/8 in H
Item Name      :      Water Meter
Material      :      Copper Alloy
Pressure Rating      :      150 psi
Size      :      5/8 x 3/4 in
Temperature Rating      :      80 deg F

Neptune's lead-free T-10 water meters offer water utilities field-proven accuracy, reliability and long-lasting performance at a wide effective flow range. Long trusted by thousands of utilities across North America, Neptune T-10 water meters are time-proven for accuracy and dependability even at low flow rates and provide a wide effective flow range for maximum revenue. The T-10 water meter is manufactured right here in America in our own foundry using proprietary technology.

  • Lead-free bronze main case
  • Proprietary polymer measuring chamber materials for long-term accuracy
  • Floating chamber design unaffected by meter position, in-line piping stresses
  • Measuring chamber - nutating disc technology design made from proprietary synthetic polymer
  • Register - direct reading bronze box and cover (standard)

Standards/Certifications: ANSI/NSF 372 and 61, NTEP certified

Applications: For cold water measurement of flow in one direction in residential service application
